12 Molds Ice lolly tubes blow molding machine
This type of ice lolly tubes blow molding machine is mainly focus on the high speed production, this 12 molds machine every hour could produce 55 pieces of ice lolly tubes. The machine speed is fast, so there is the cooling conveyor connected with the blower to cool the tubes. After the tubes go through the conveyor, the tubes will be separated auotomatically.
Video Demo:
Machine is customer Jobsite
Machine in customer jobsite
Machine testing in factory
Parameters:
Model Parameter | 12 Molds ice lolly tubes Blow molding Machine |
Screw Rod Extruder Dia.(mm) | 65 for 12 moulds |
Rotating Motor(KW) | 2.2 |
Product Volume(ml) | 85ml |
Weight(KG) | 3000 |
Rated Power(KW) | 20 |
Dimension(L, W, H) | 6000x2700x2300 |
Applicable Material | PE/PP |
Air Consumption (m3/min) | 0.6 |
Air Pressure (Mpa) | 0.4-0.7 |
Cooling water volume(m3) | 1.0-1.5 |
Output (pieces/hour) | 5000-6000 |
Power Supply(V) | 380, 3 Phases, 50Hz |
Working Plan | Under voltage rating, 24 hours running |

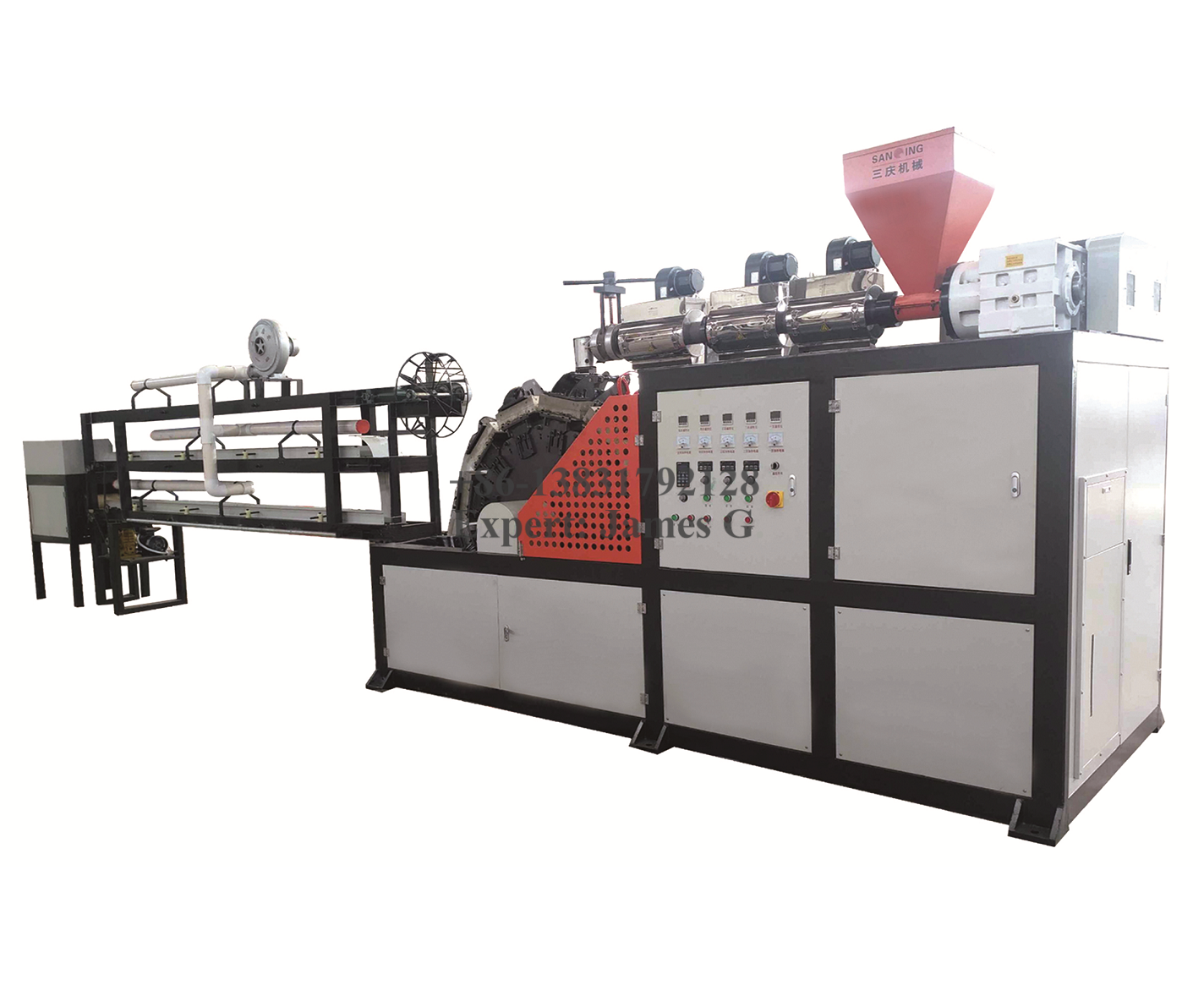

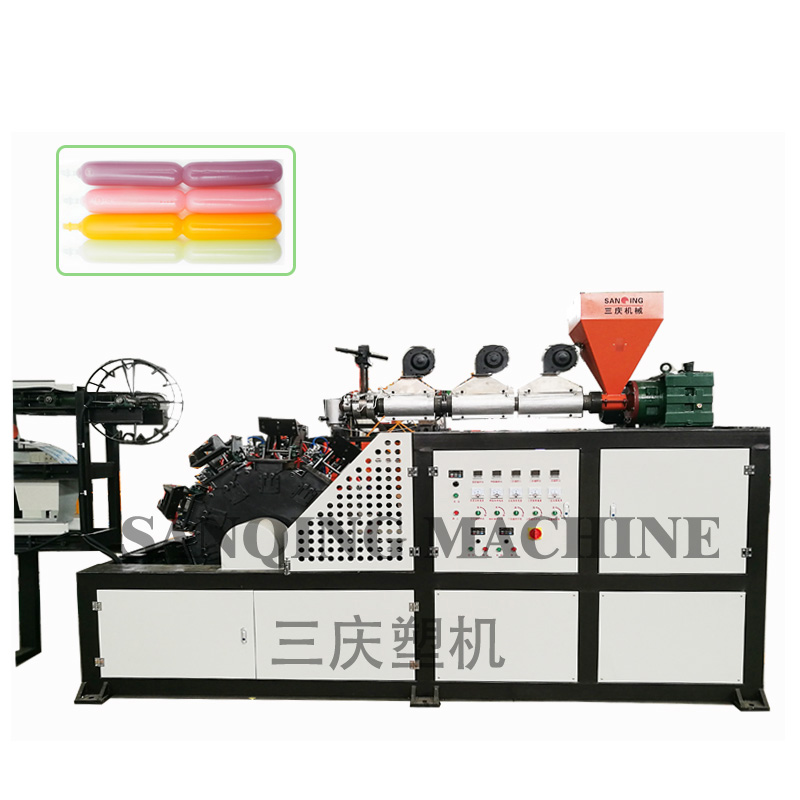

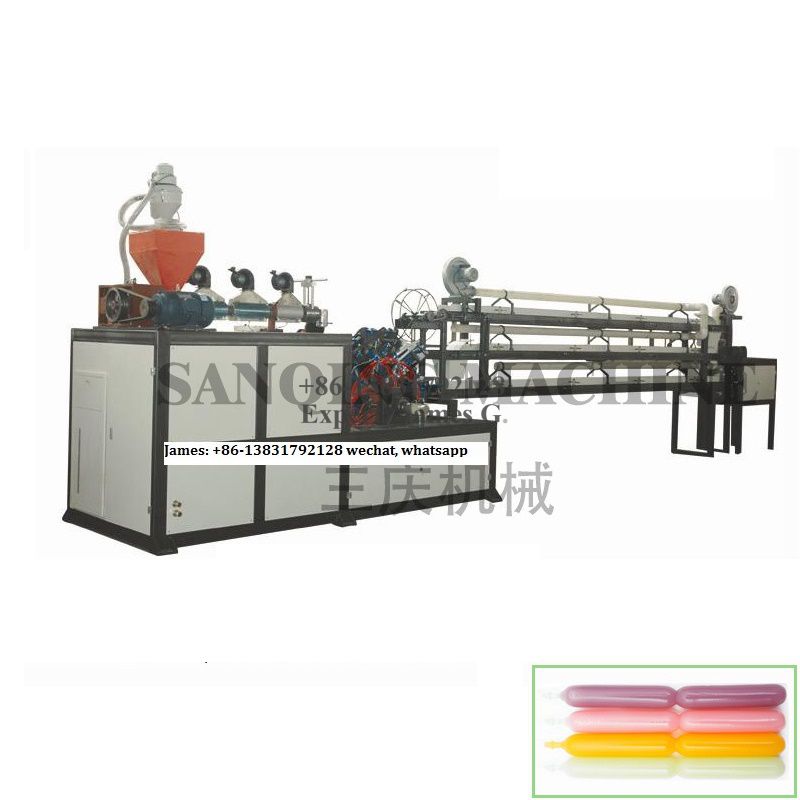

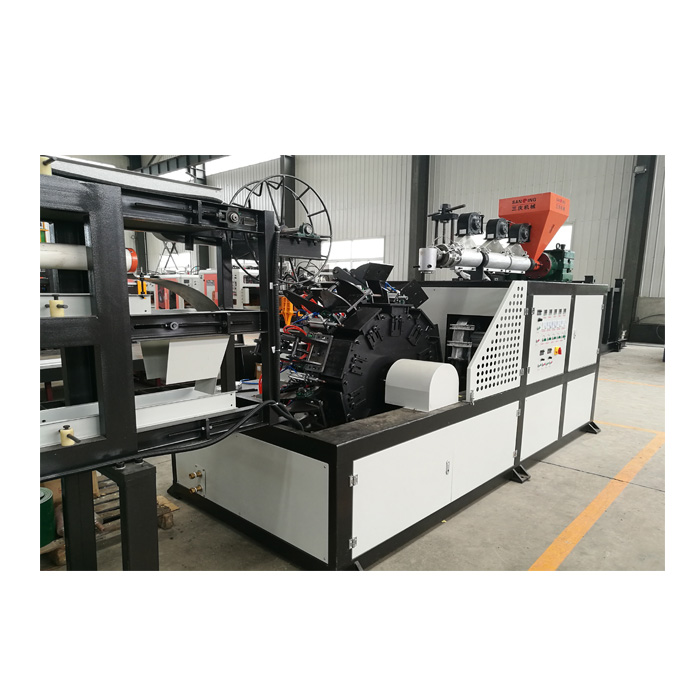

Machine Photo:

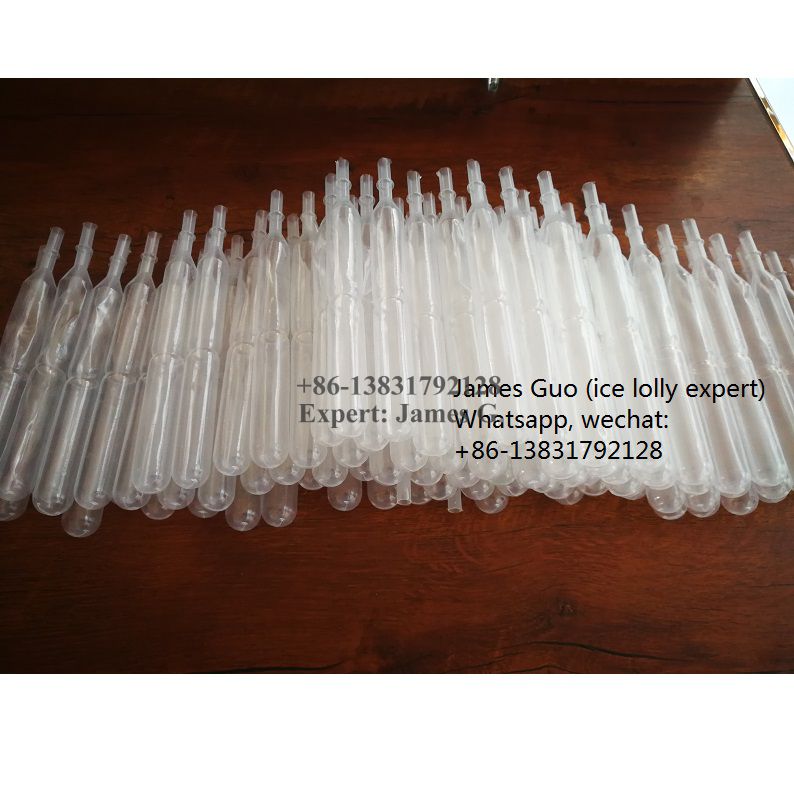

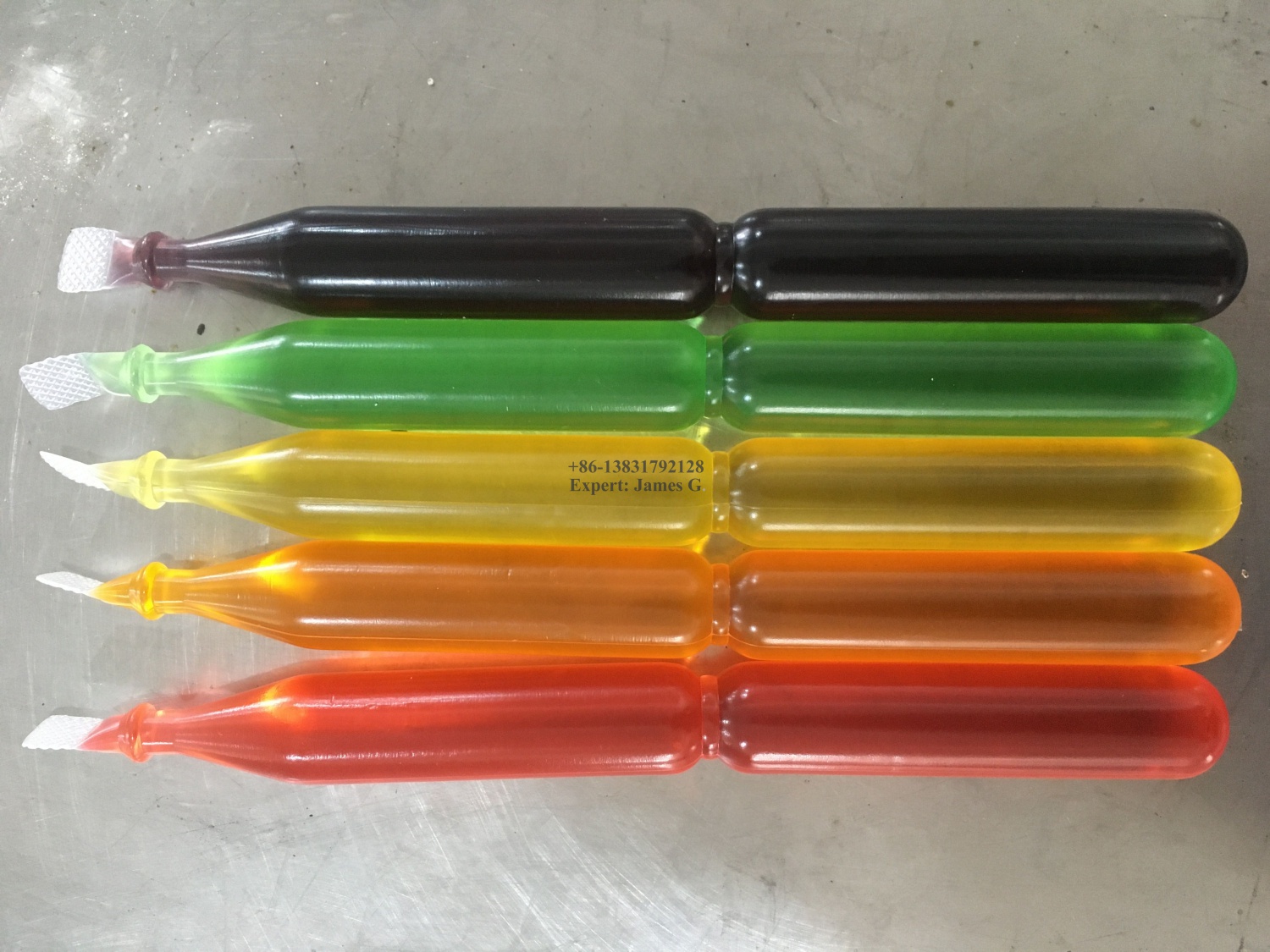

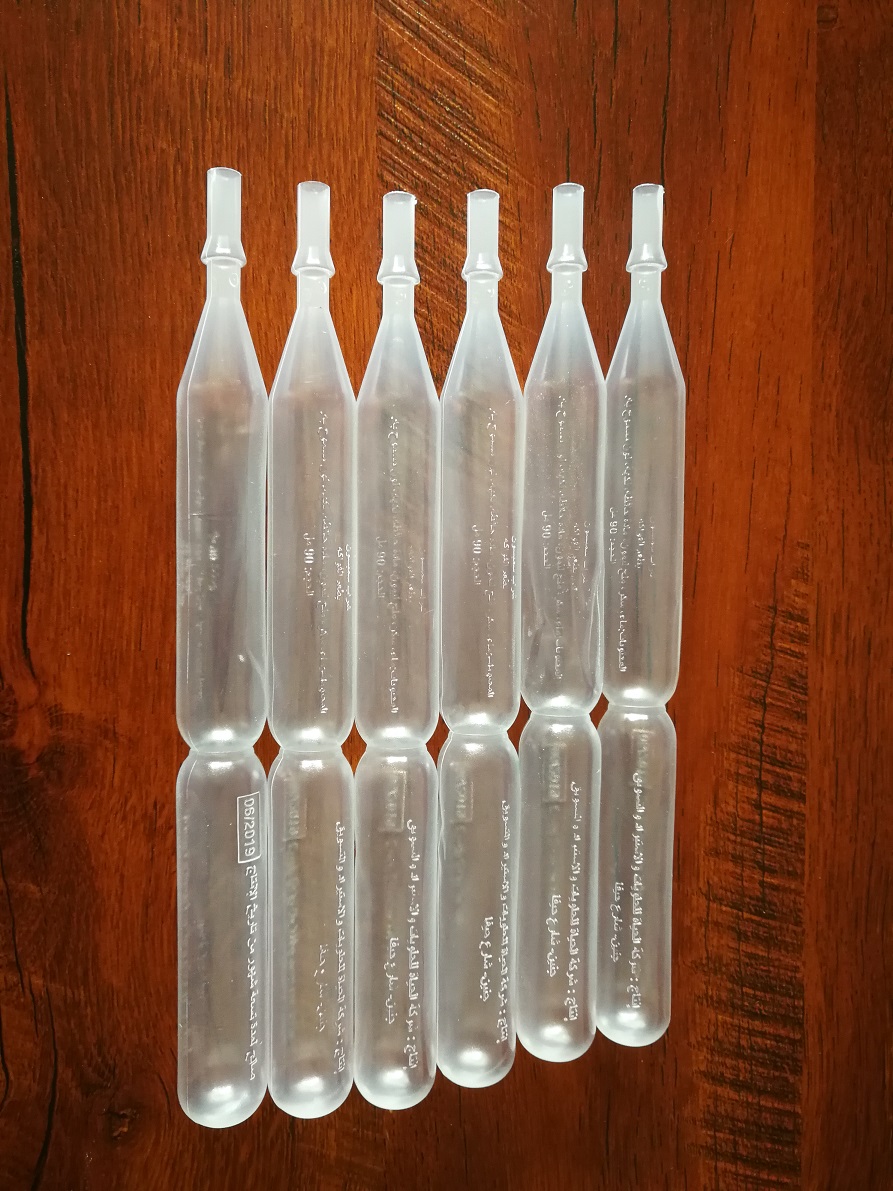

For Ice lolly tubes production:
Ice lolly Tubes Drawing:
Customer could provide us drawing or sample, we will able to produce molds based on customer needs; If customer don't have drawing or sample, we will able to provide our drawing to customer to choose. We also could modify the drawing based on customer requirement.

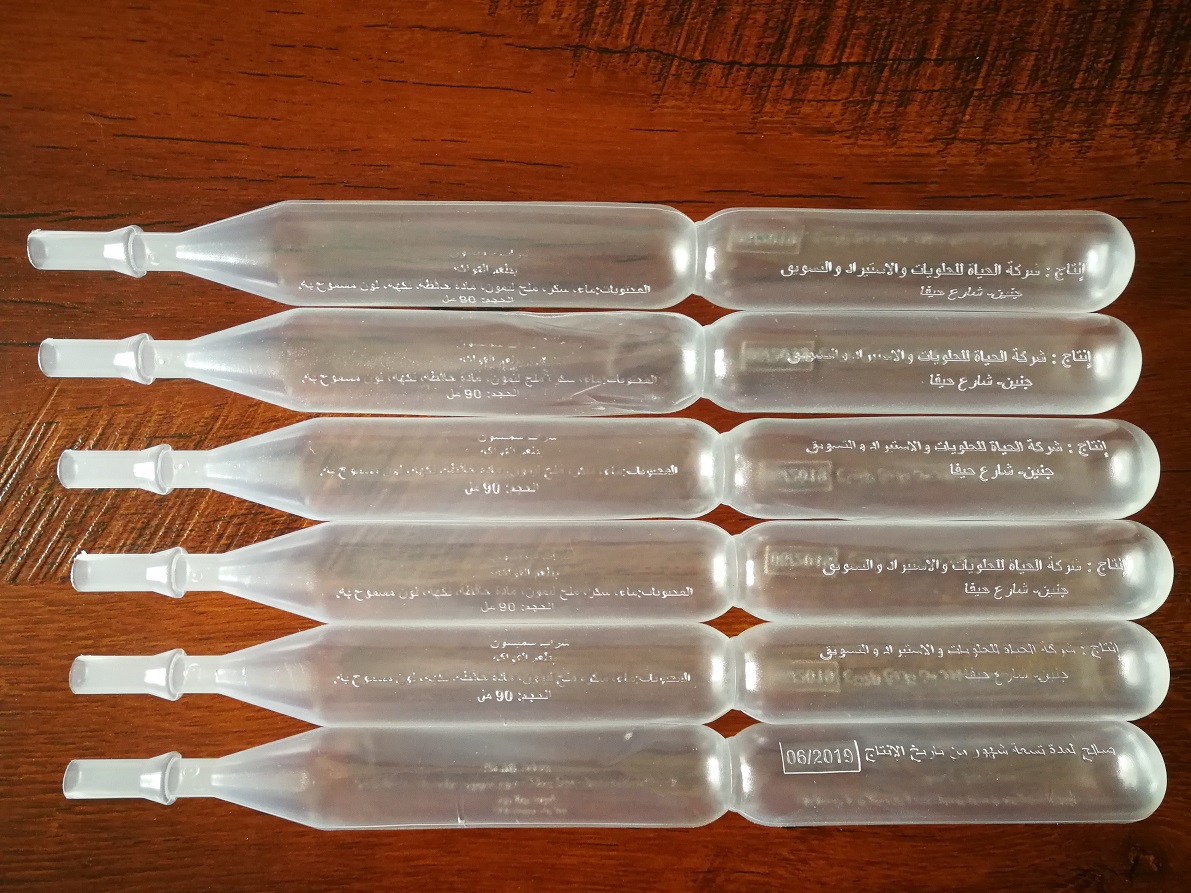

Customer also could put the logo on the tube body, including the arabic words of ingredients as well as changeable month and year. We could produce based on the requirements.
For 90ml ice lolly tubes, every piece about 3 grams
For 40ml ice lolly tubes, every piece about 2.2 grams
Auxiliary Machines
Auxiliary Machines are necesary for blow molding machines. Only blow molding machine cannot operate, we should use the blow molding machine together with below auxiliary machines:
1, Air compressor: use to supply compressed air
2, Auto Loader: use to load virgin resins to the hopper of the extrudor
3, Chiller: use to cooling the molds, because after long time operation, the molds will become hot;
4, Crusher: for the waste material from the blow molding machine, crusher will break the waste material to be small pieces, so we could use the recycled materil to mix with virgin resins again(customer decied to reuse material depends on the actual condition).
5, Mixer: The recyled material will be mixed with virgin resins and use mixer to mix the materials averagely.

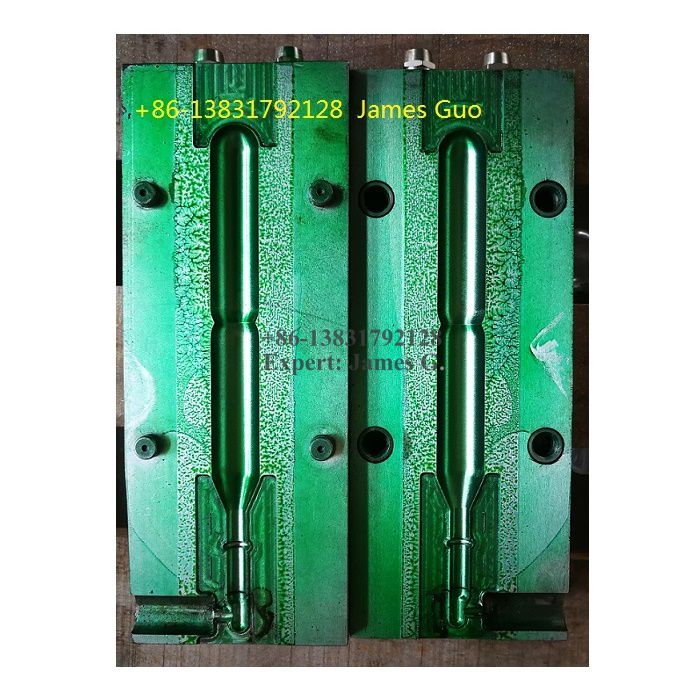

6, Molds: all the plastic product shapes depend on molds, we can produce molds for the blow molding machine, the molds could be designed by our company;
