ice pop Tube Blowing Machine

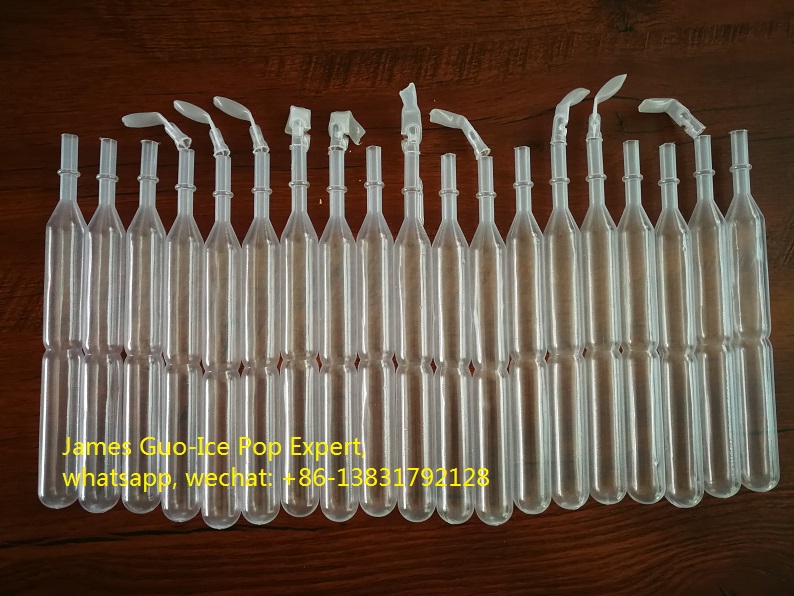

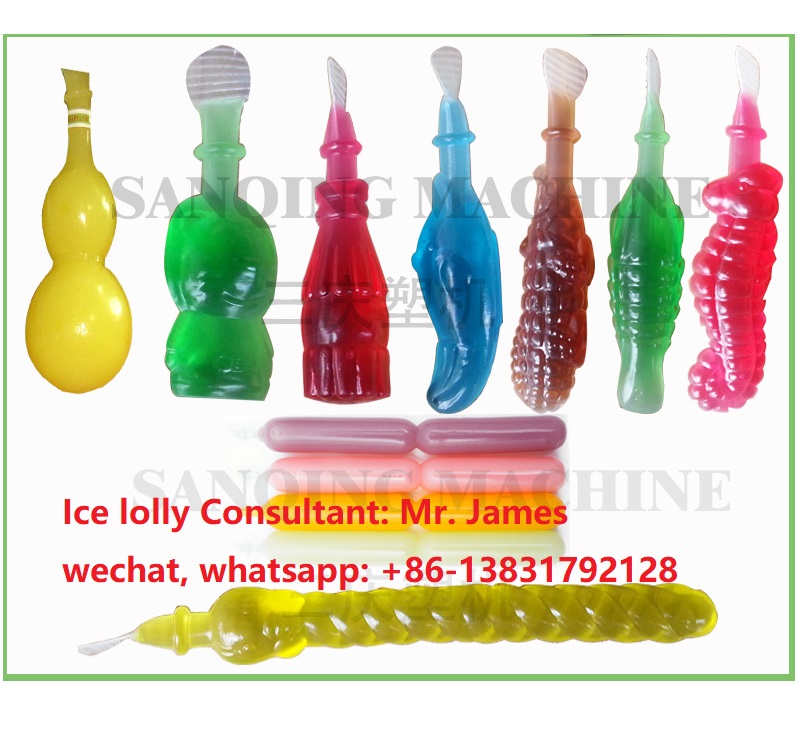

Rotary Blow Molding Machine is our famous machine, which is suitable to produce small bottles from 1ml to 800ml. This machine was widely used for produce ice lolly tubes, ice pop bottles, milk bottles, yogurt bottles, medicine bottles and pipette dropers.
Rotary Blow molding machine could work with LDPE, HDPE, PP materials, the bottle thickness could be controlled by our machine easily.
Our Rotary blow molding machine could produce with very high speed output, each hour can reach 3000 pieces of lolly tubes. 5000 pieces of pipette droppers. 1000 pieces above of the milk yogurt juice bottles;
Max. Bottle Containment | 800ml |
Productive capacity | 2500-3000 PCS/HR for Lolly tube |
Allowed Mould width | 125mm |
Allowed Mould Thickness | 118mm |
Blowing Air pressure | 0.4-0.7Mpa |
Rated Power | 15kw |
Extruder Screw Diameter | 55mm |
Plasticizing Capacity | 40KG/Hour |
Size of Main Frame(L.W.H) | 3300×1200×1500mm |
Weight | 1500kg |
Video Demo:
Below is ice lolly tube blow molding machine video from youtube.com
Below is litchi bottle 8 stations rotary blow molding machine demo::
We have three styles of rotary blow molding machine:
- connected style: the blower and extruder is connected to be a whole machine;
- separate style: the blower and extruder is separate to be two separate machines;
- PLC style: the blower and extruder is conneceted and controlled by PLC touch screen.
Connected Style Rotary Blow Molding Machine as below:

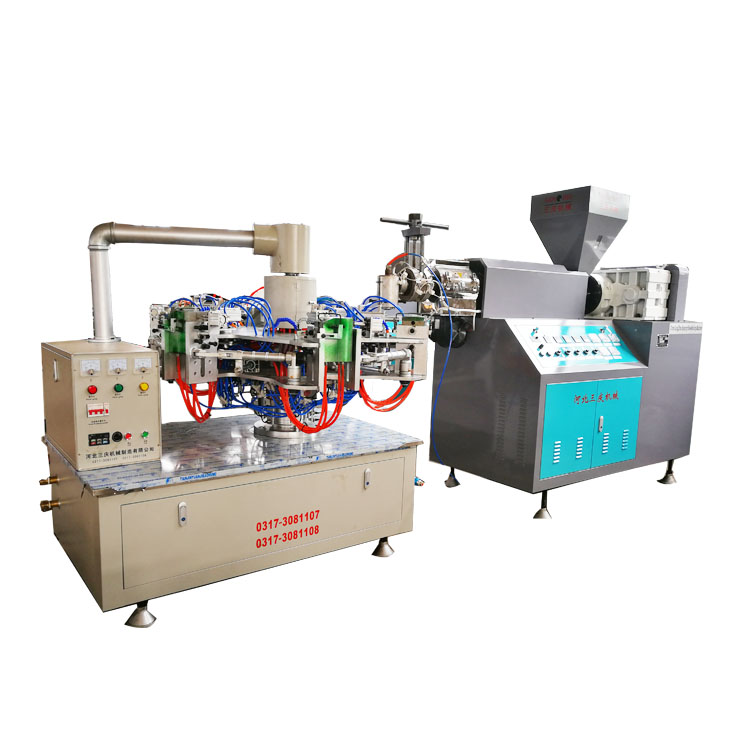

Separate Style Rotary Blow Molding Machine as below(Extruder and Blower Separately):

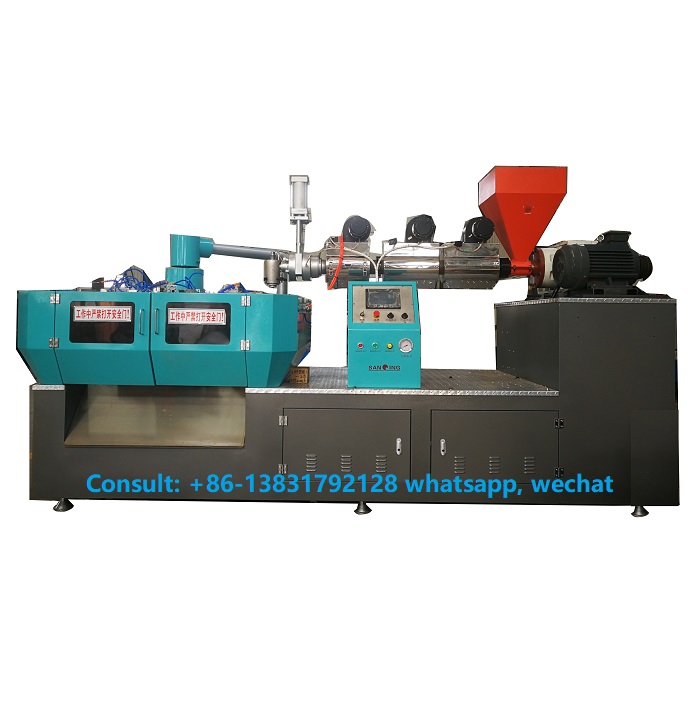

PLC type Rotary Blow Molding machine as below:
1, this type machine equipped with PLC control screen, the temperaturer controller is build in system.

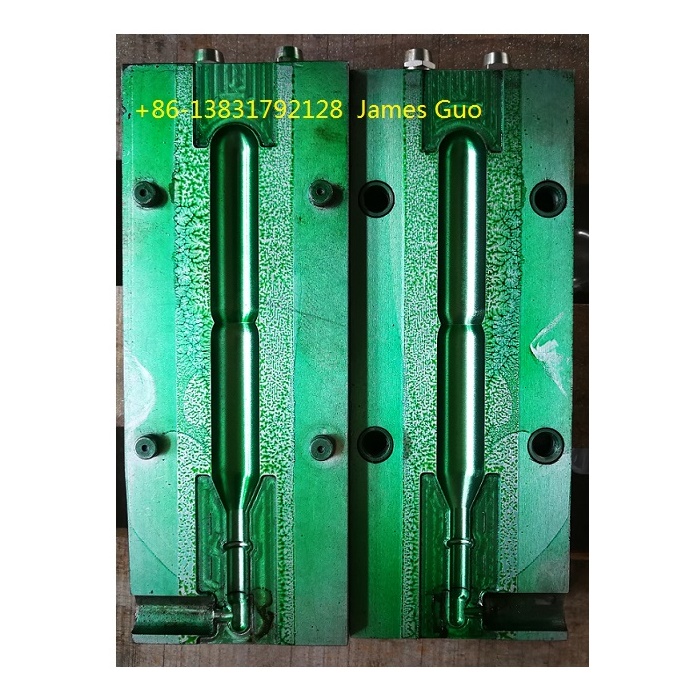

Ice lolly Tube Moulds are as below:
