         See ball also known as kids ball, ocean ball, pit ball, this seaball blow molding machine was designed for sea ball products, which is suitable to produce LDPE material sea balls from 5cm to 10cm. This machhine also could produce some small hollow products (needs to be discussed in detail). Customer could either choose single die head, double die heads or triple die heads. Two sides working stations could be install deflashing devices to achieve automatic working process.

         Sea ball has no hole: Usually the sea ball has no holes, our machine also could produce the ball without blowing holes. Customer no need to be afraid this point.

         Extruder size: Customer could choose 65mm or 75mm screws, if customer needs 8 cavities per mold, then 75mm extruder is necessary, because it could make larger volume of plastic materials per hour. If you choose 12 cavities, that means one mold have 12 balls ( 3 lines, each line 4 pieces, for 8 cm ball), usually you should choose 80mm extruder.

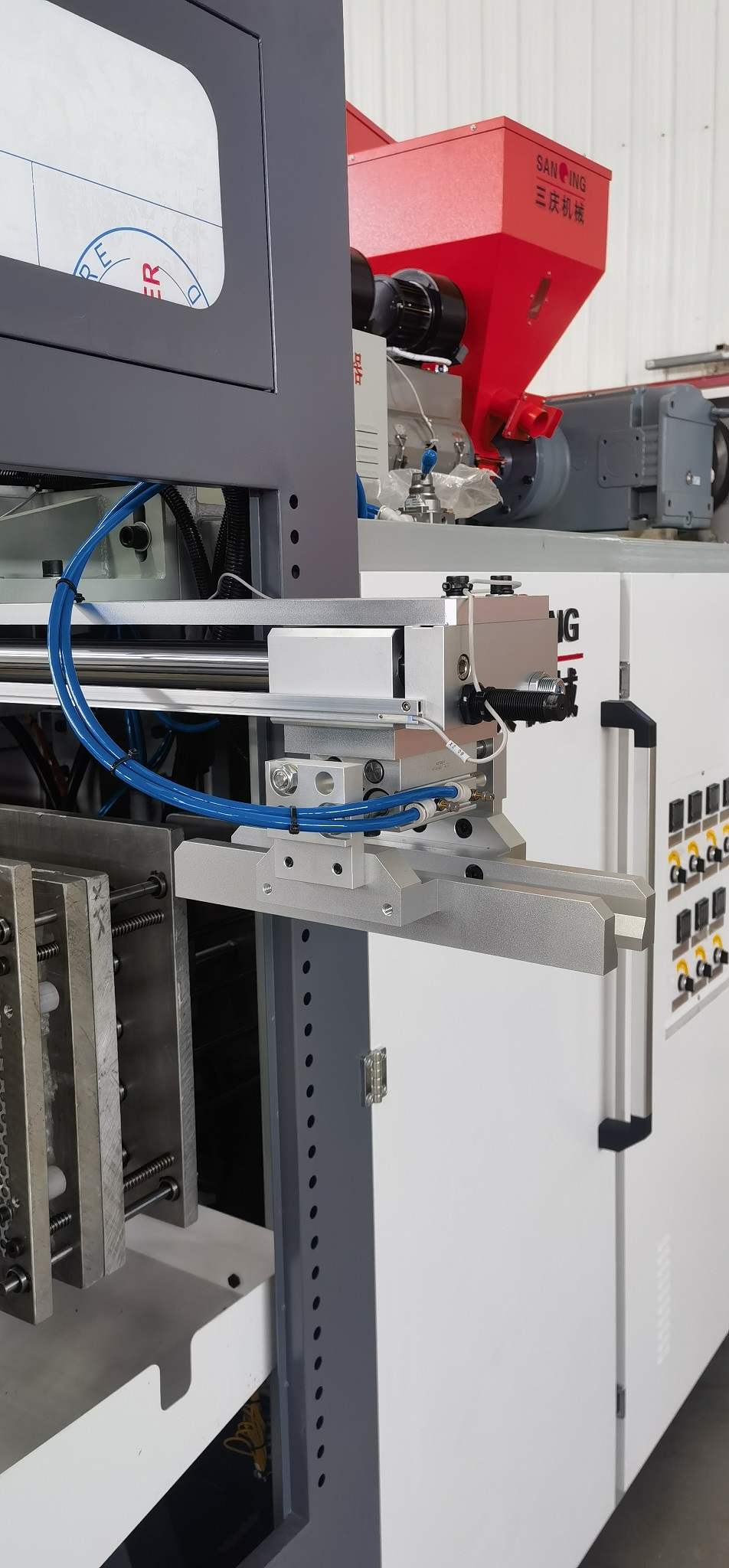

          Robot Hands: We also could offer robots to take out the waste ball frame from machine, which is optional, in case customer has this kind of request, we could help to achive it.

          Filter Device：Usually the filter could filter out the dust from the material, so the sea ball surface will have no dirty dots, but this function is optional, customer could choose based on the requirements. But we sugguest to choose the filter, because usually customer will mix the recycled material with virgin material, it will be easy to have dust.

          Servo Motor for Hydraulic pump: Our machine could offer the servo motor for the hydraulic pump, so customer could save energy for the hydraulic part. Then why save energy? Because the hydraulic power is responsible for the mold closing process, when the mold closing process is not there, the motor could stop running to save energy.

         The machine is automatic process, no need manpower for separate waste process.

video demonstration is as below:

(In China, we have a sea ball production base, our machine is popular and most widely used in the sea ball production base)

Colorful soft plastic ocean ball blowing machine video:

Three die heads ocean ball blowing machine video:

Sea ball, ocean ball machine photos as below:

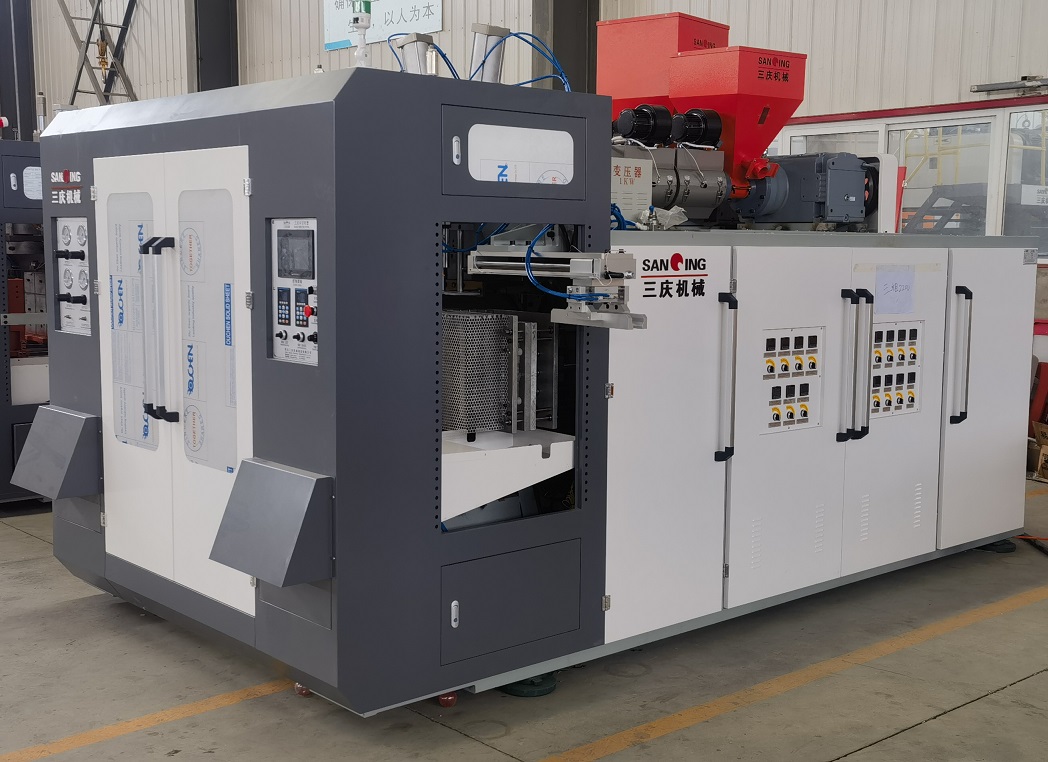

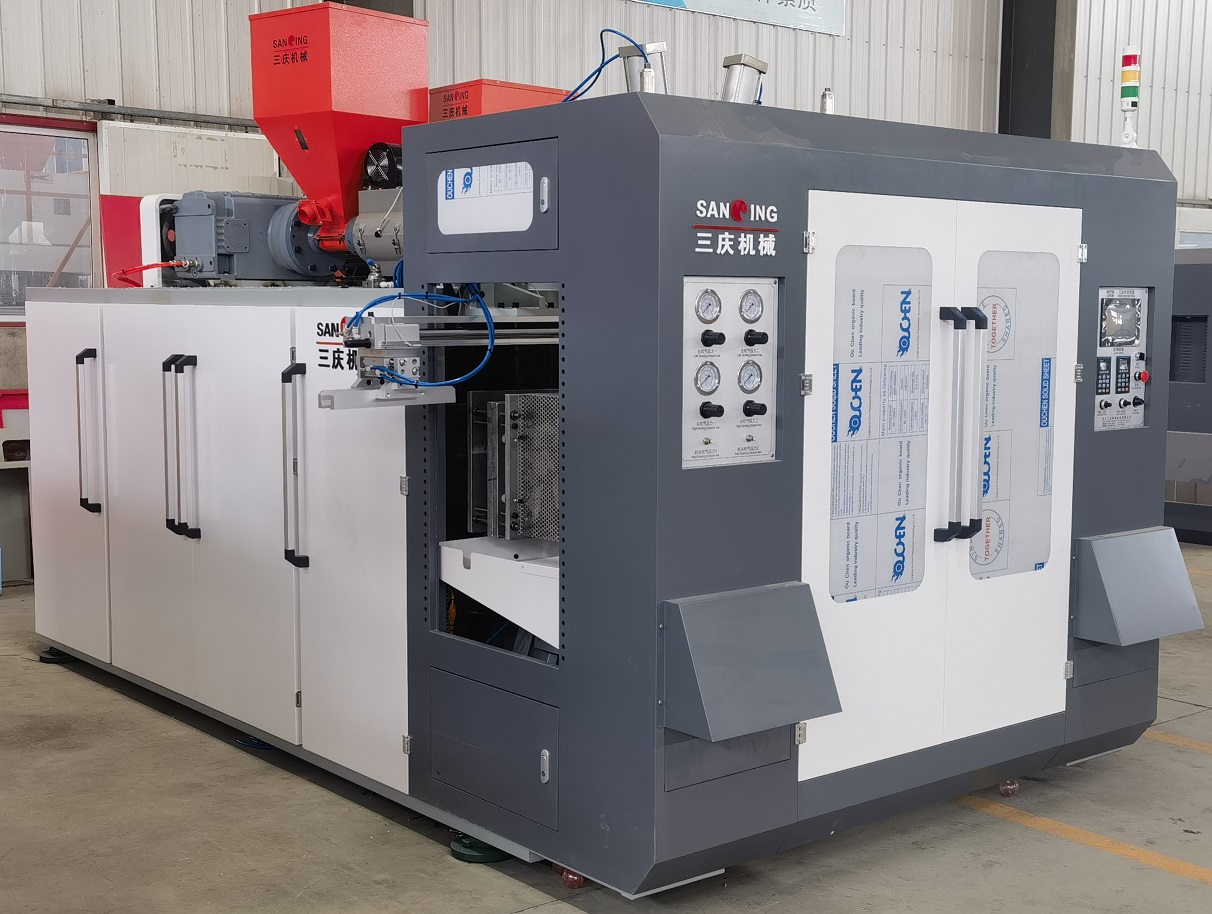

whole machine demo.

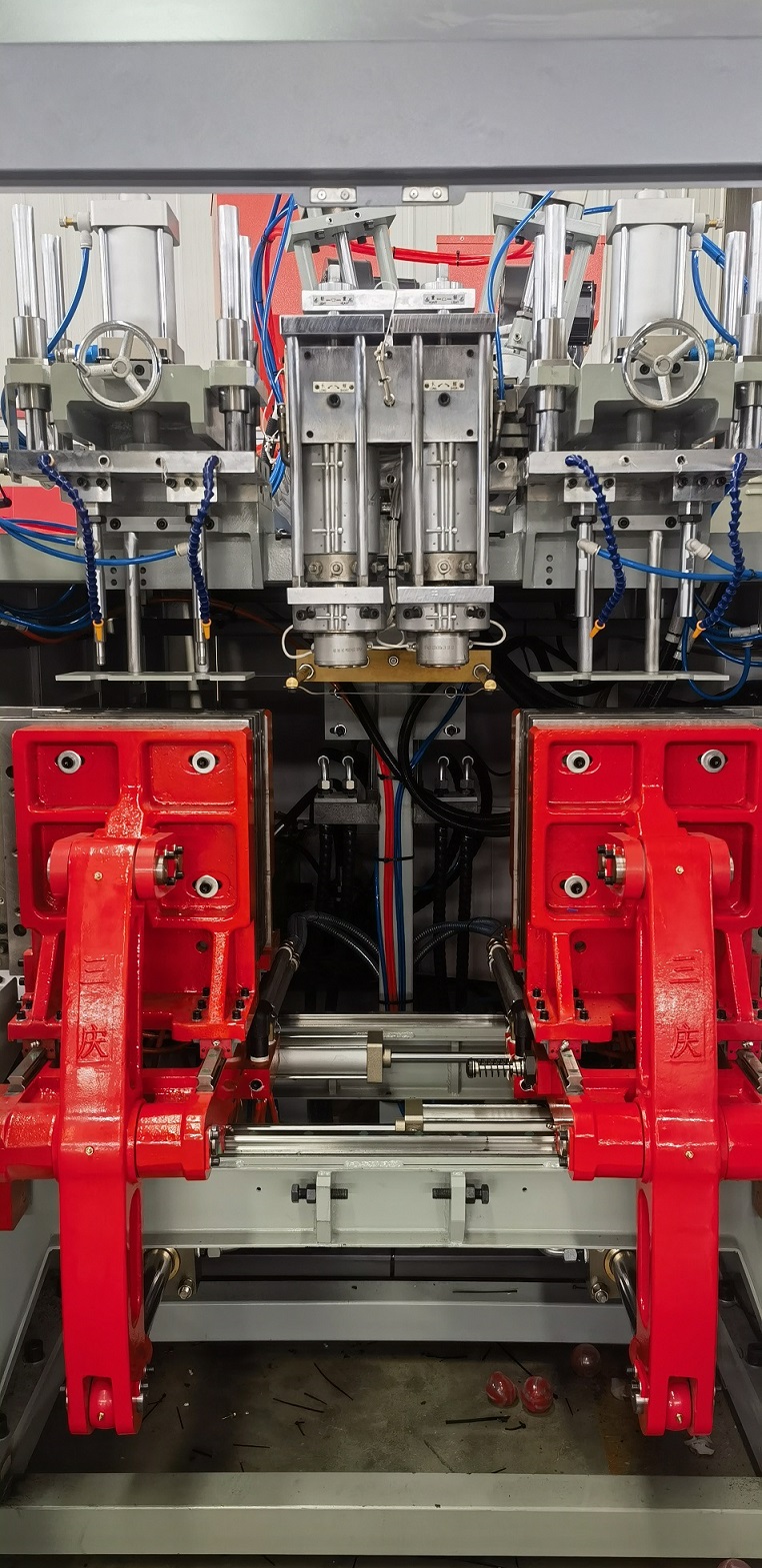

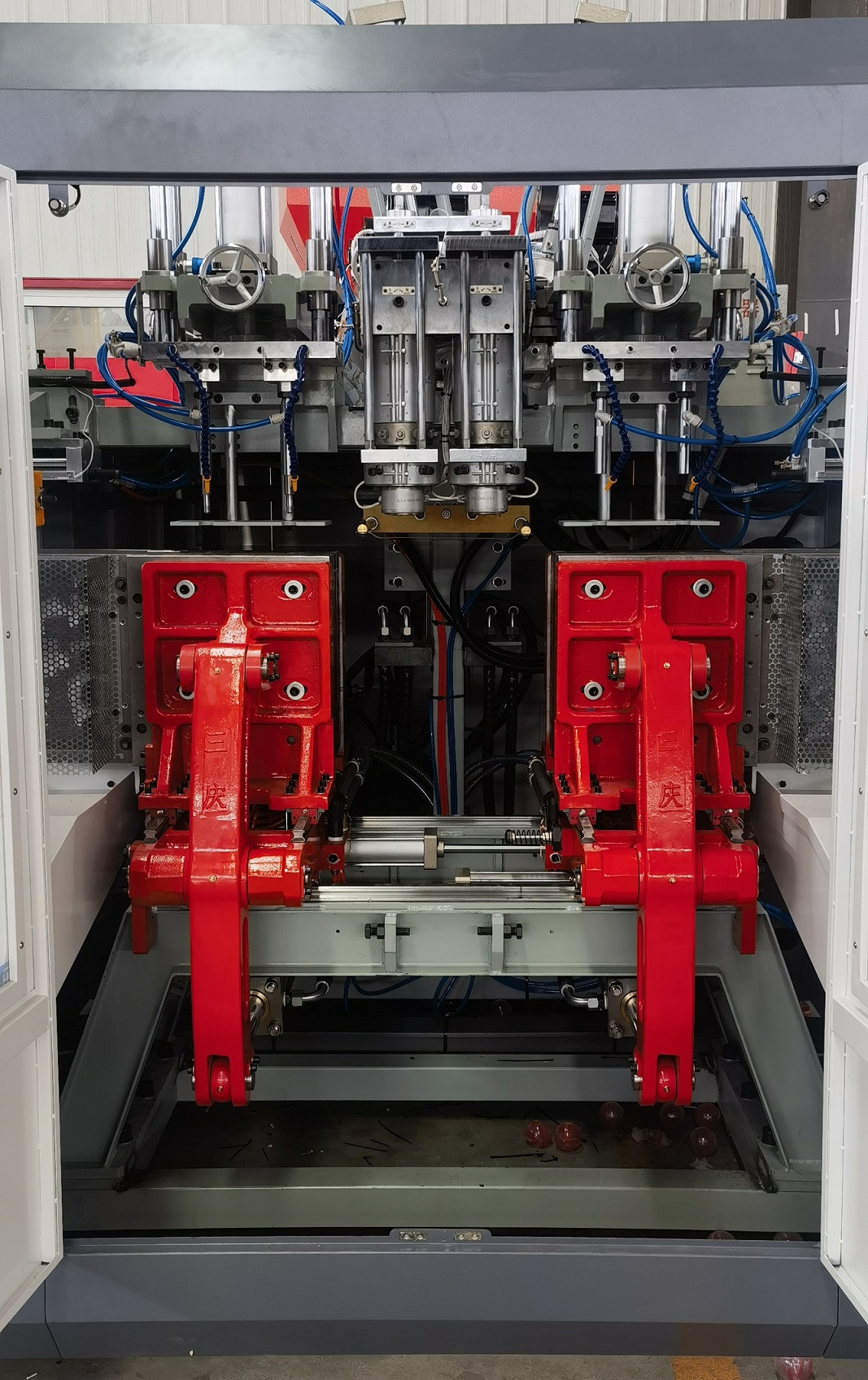

Double Die heads, Double Stations

Casting Steel Mold Board

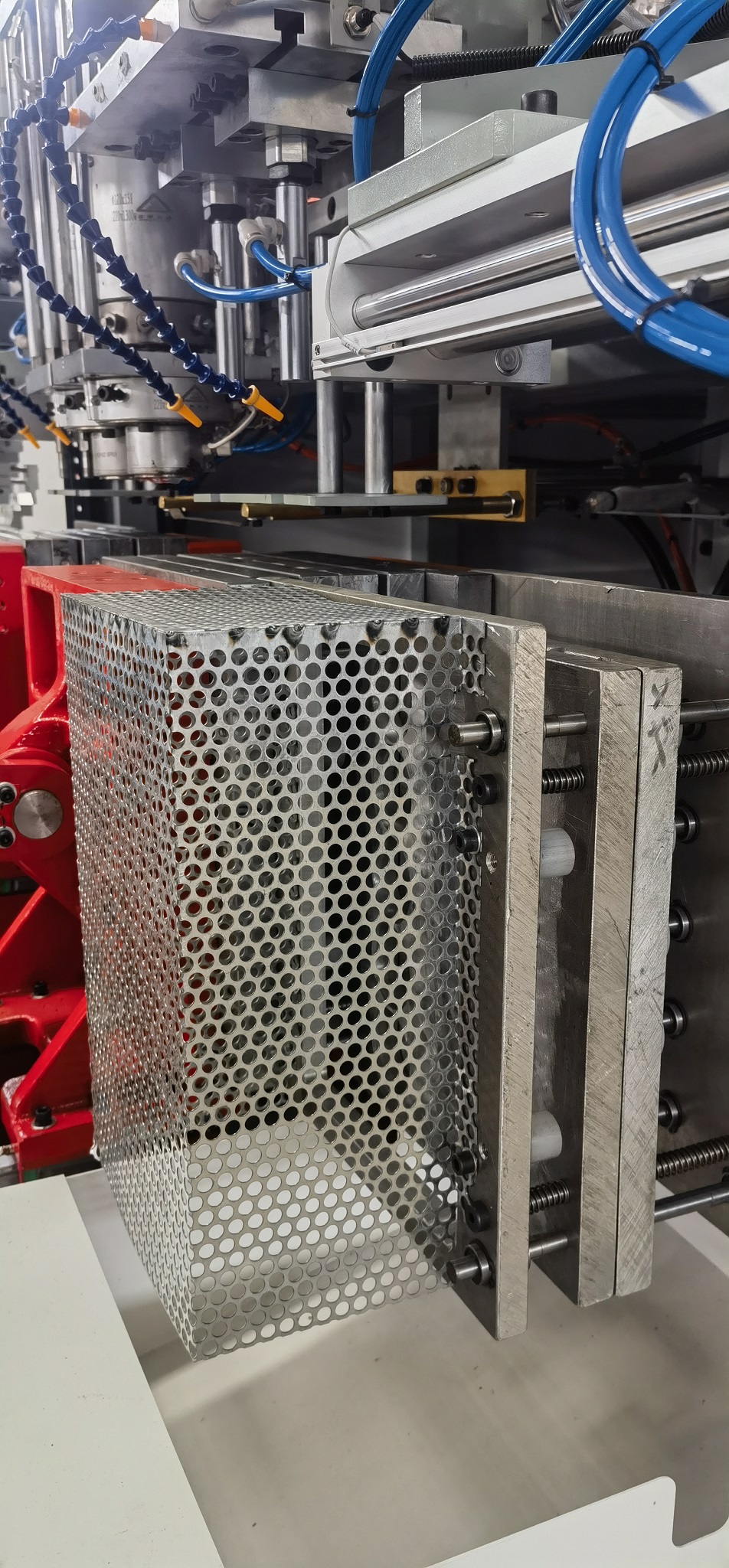

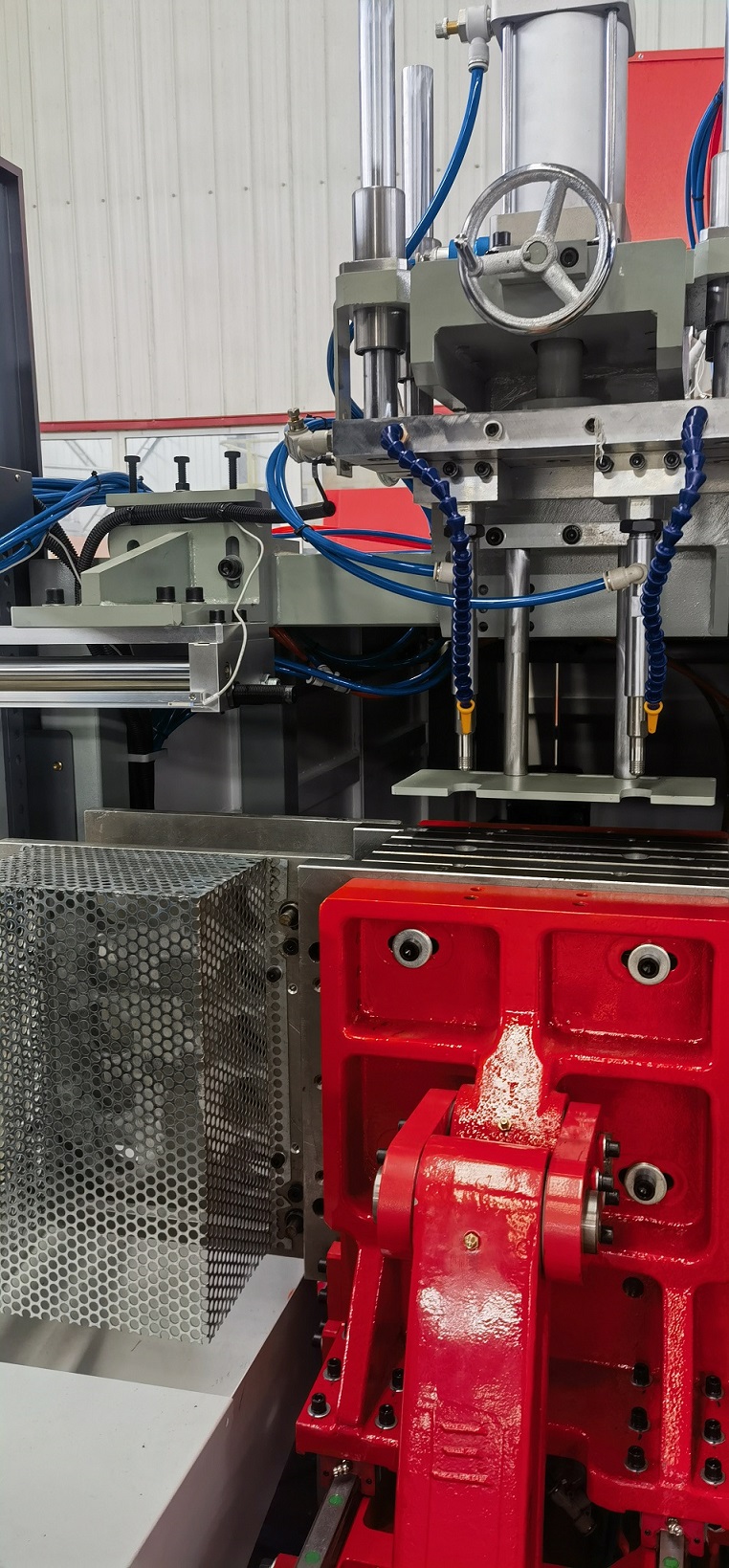

Left side Mold Frame

De-Flashing Mold Demo. (The cylinder will push the ball out of mold easily)

Filter Devices. (You can change wire mesh easily with filter device)

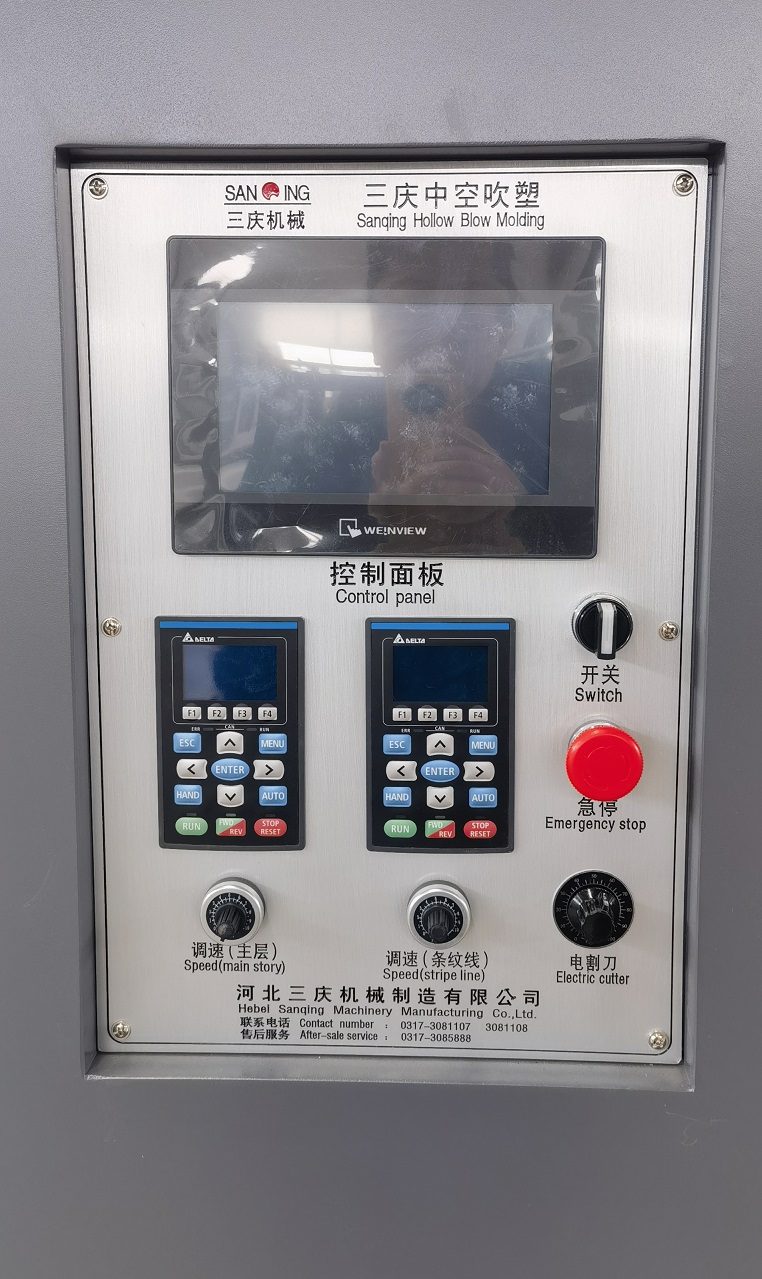

Monitor and Control Panel

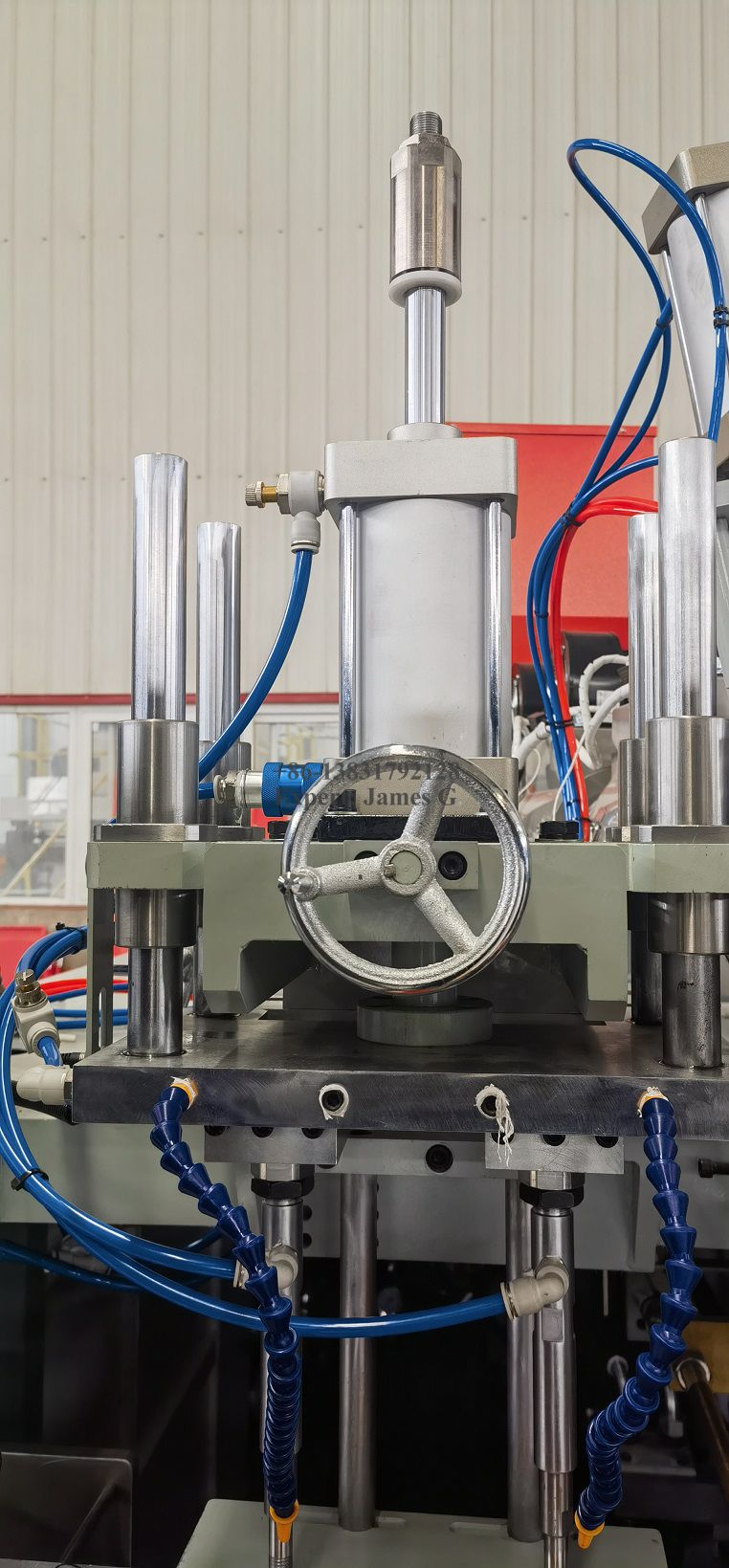

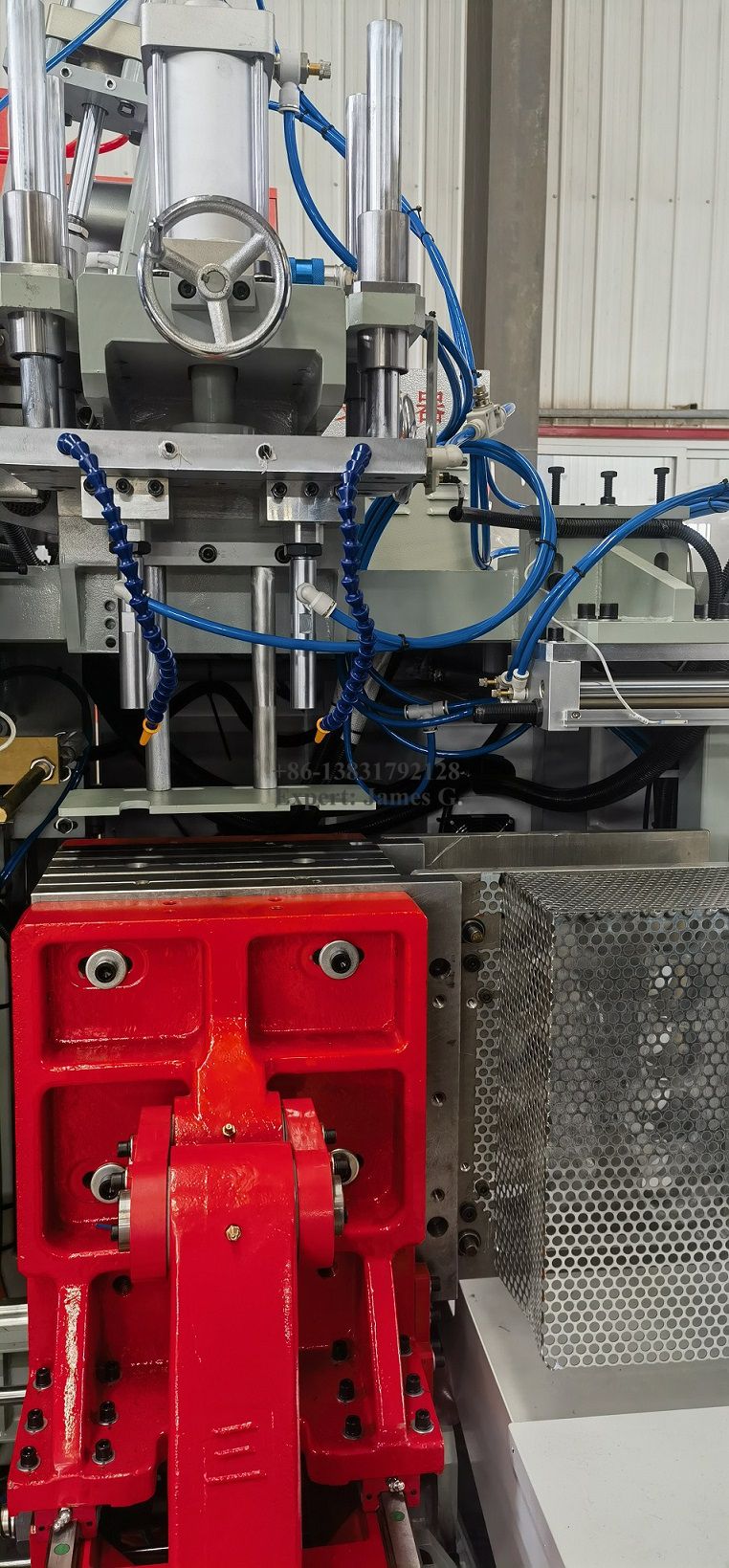

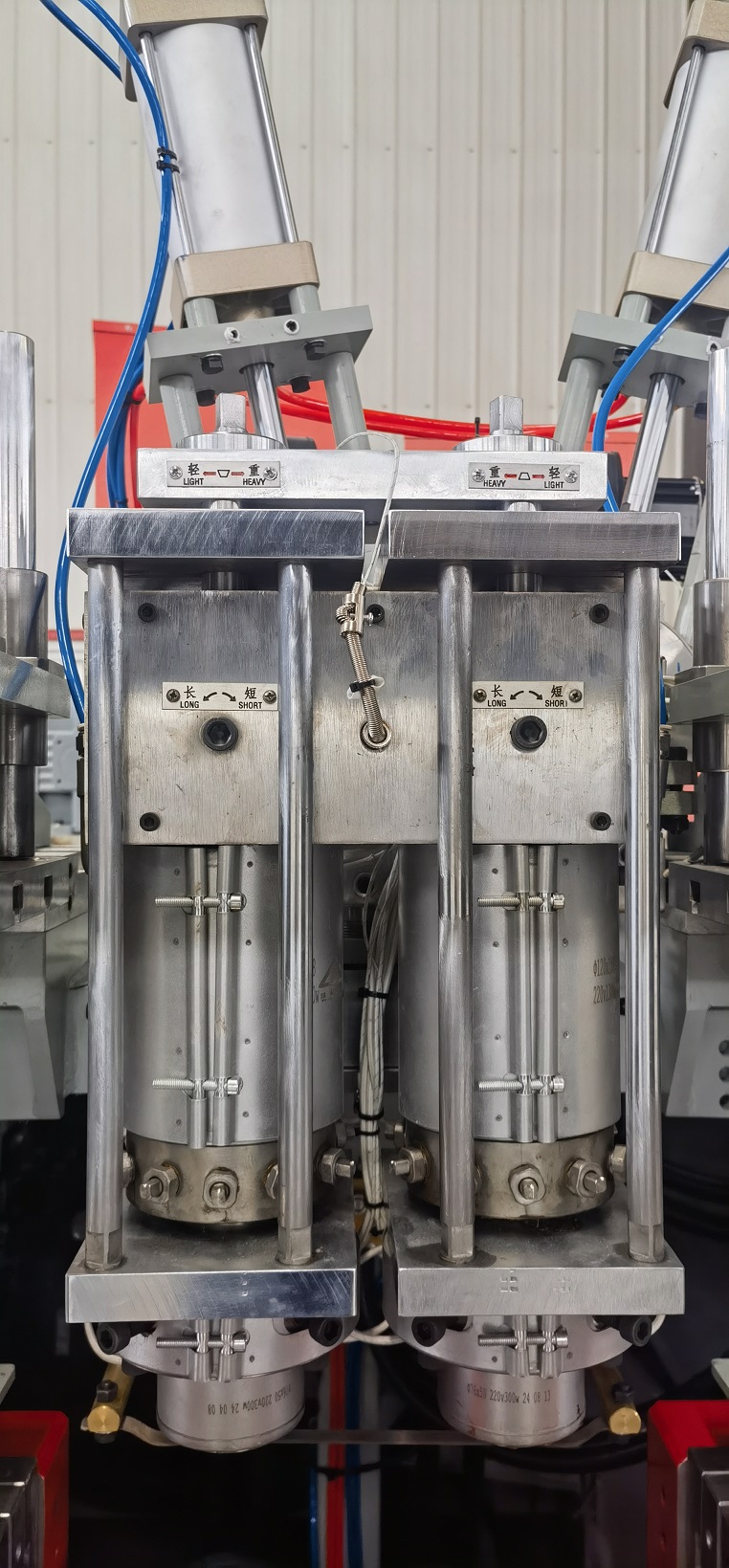

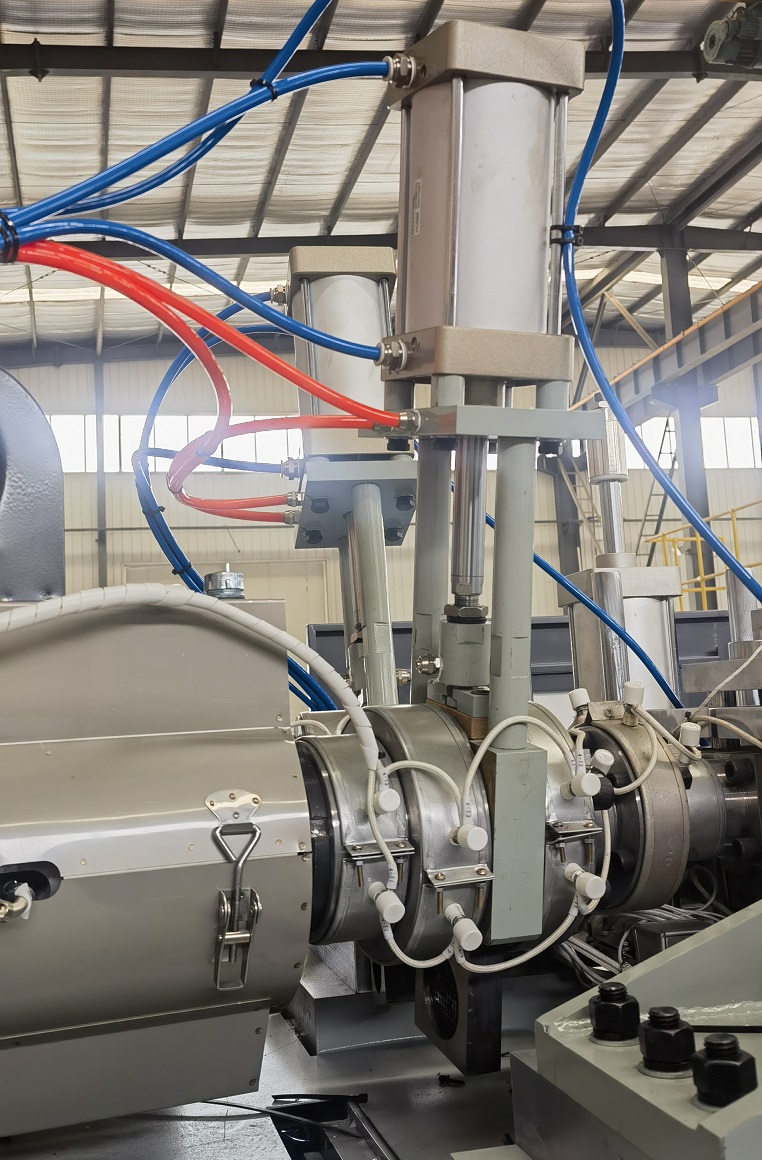

Die Head Demo. (You can adjust the parison thickness & direction of parison)

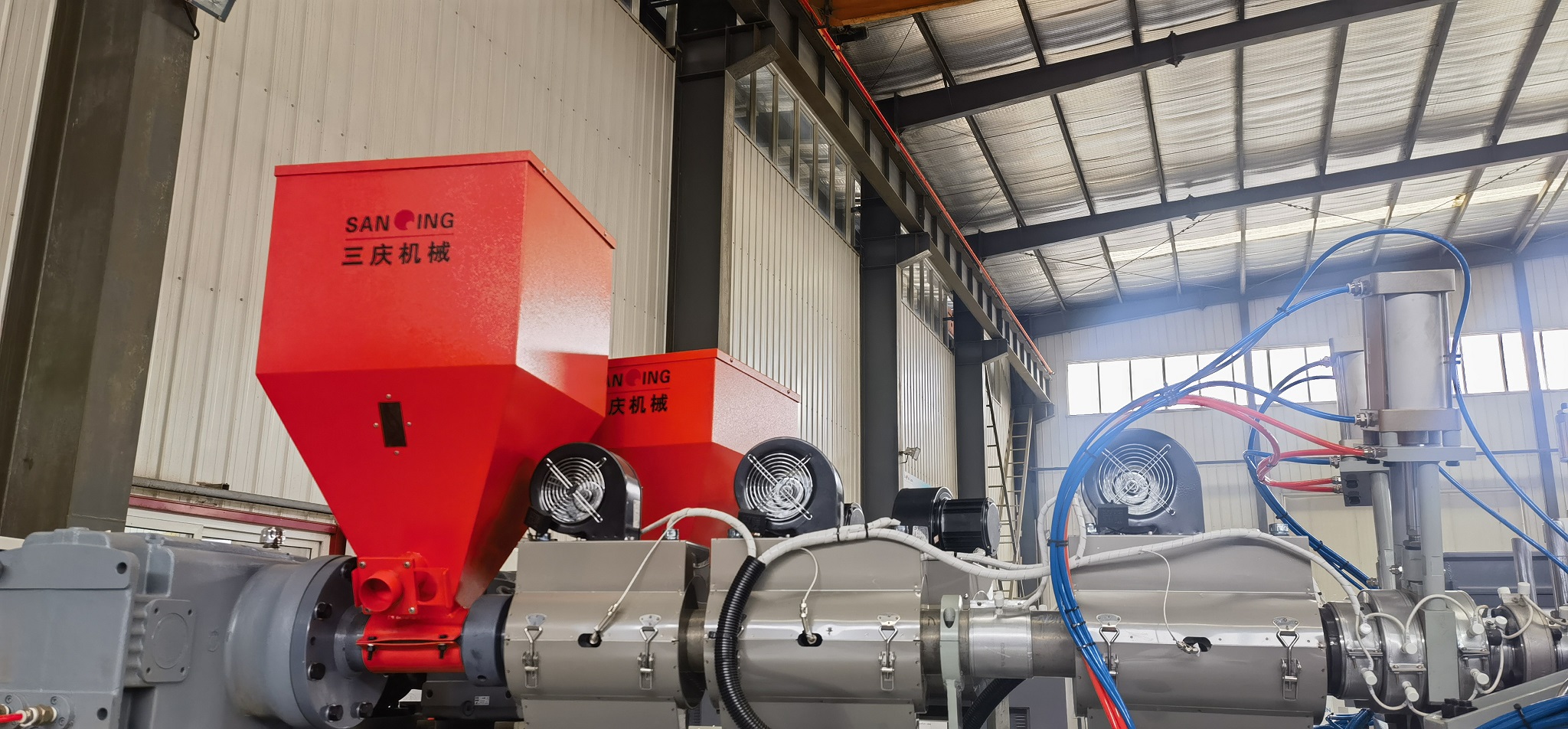

Screws and Gear box Demo

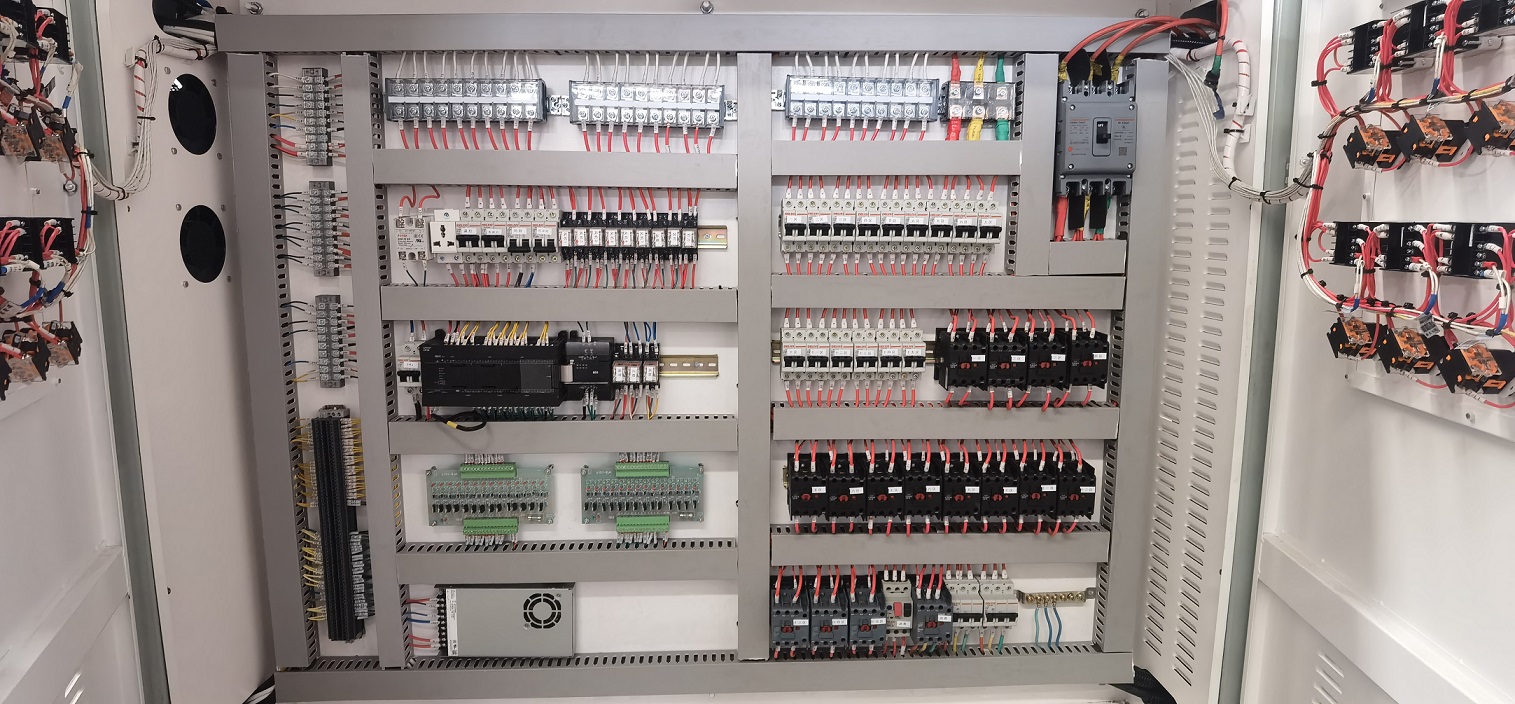

Electric Cabinet

Seaball Molds:

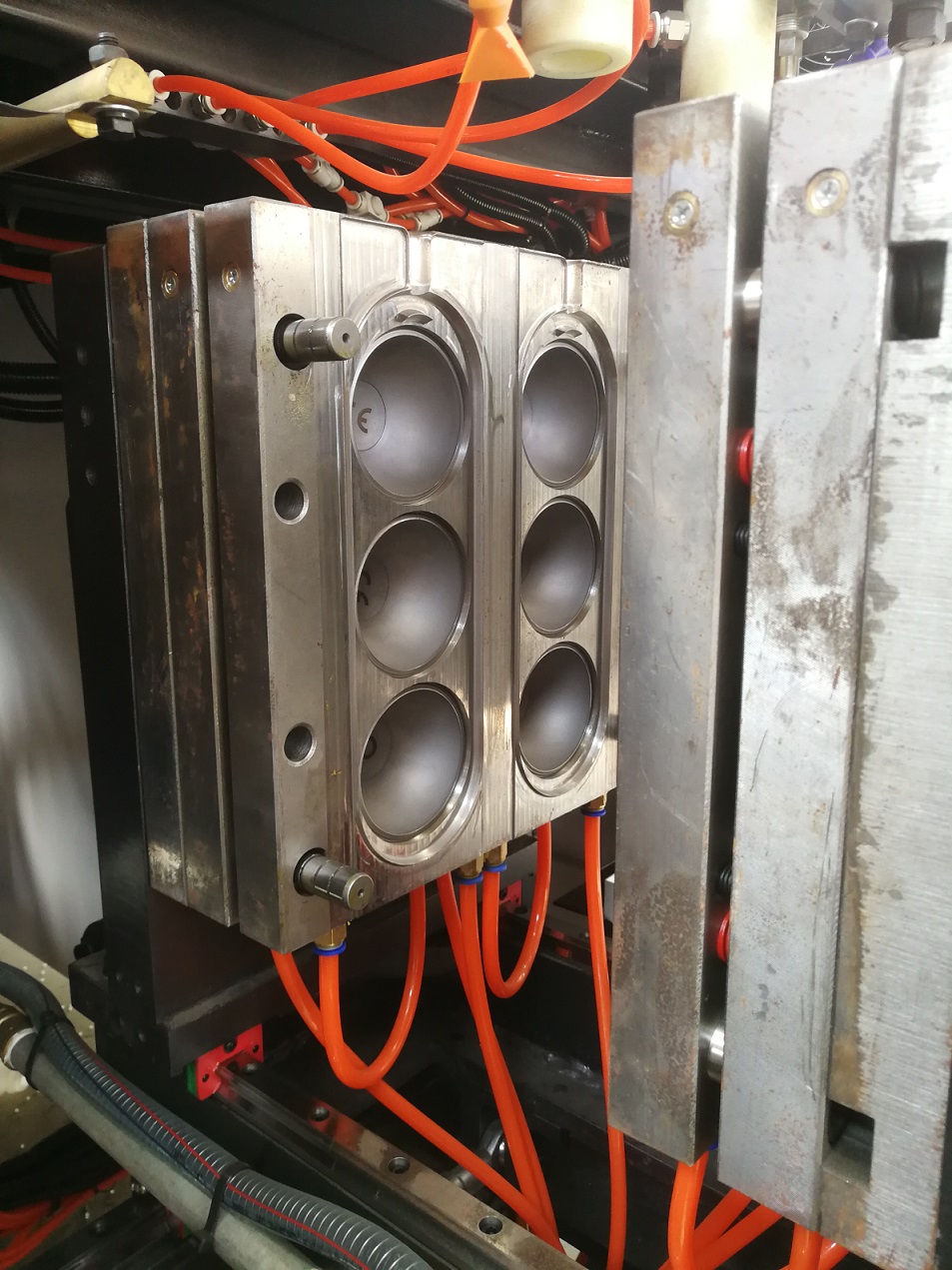

above is ball mold

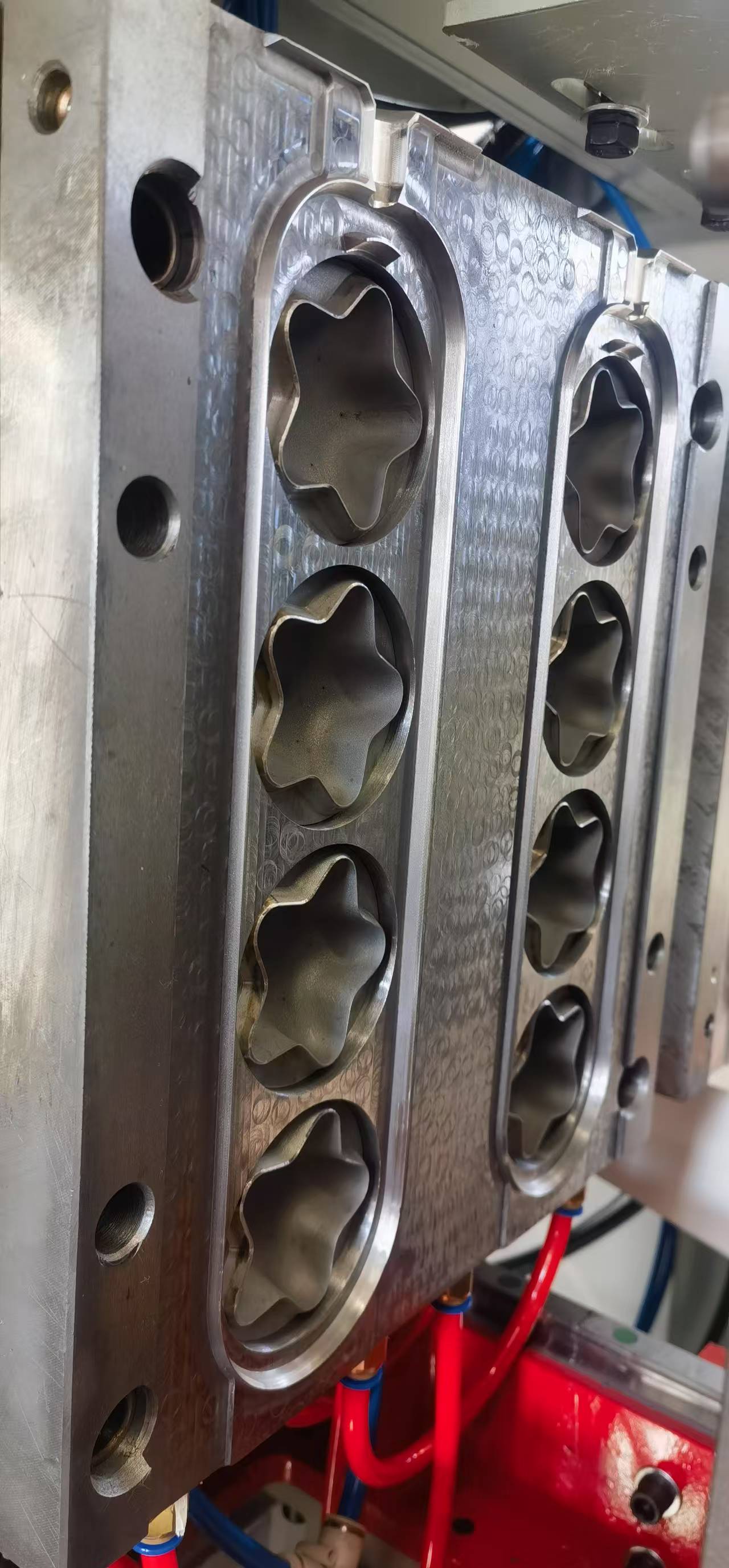

Above is star shape mold

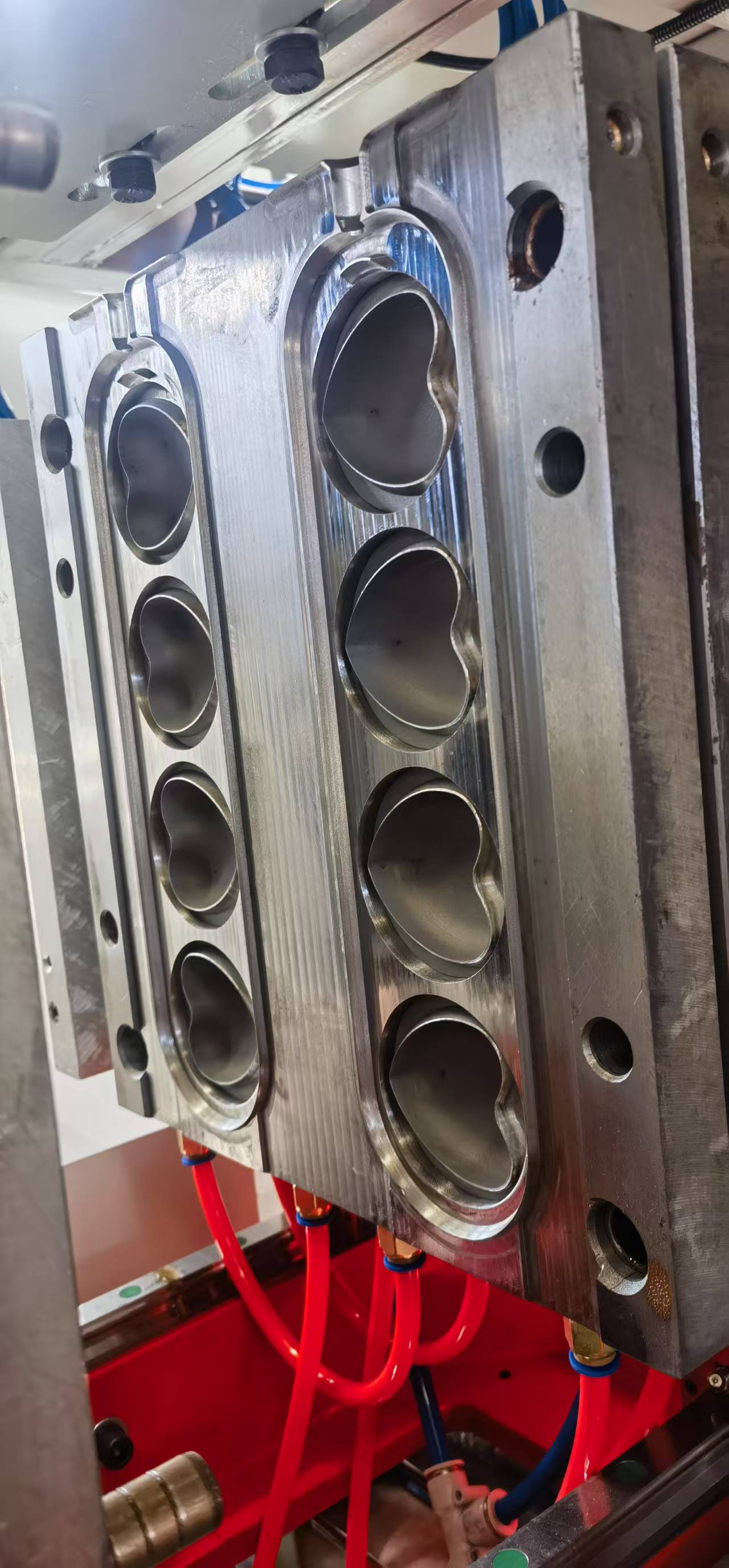

Above is heart shape mold

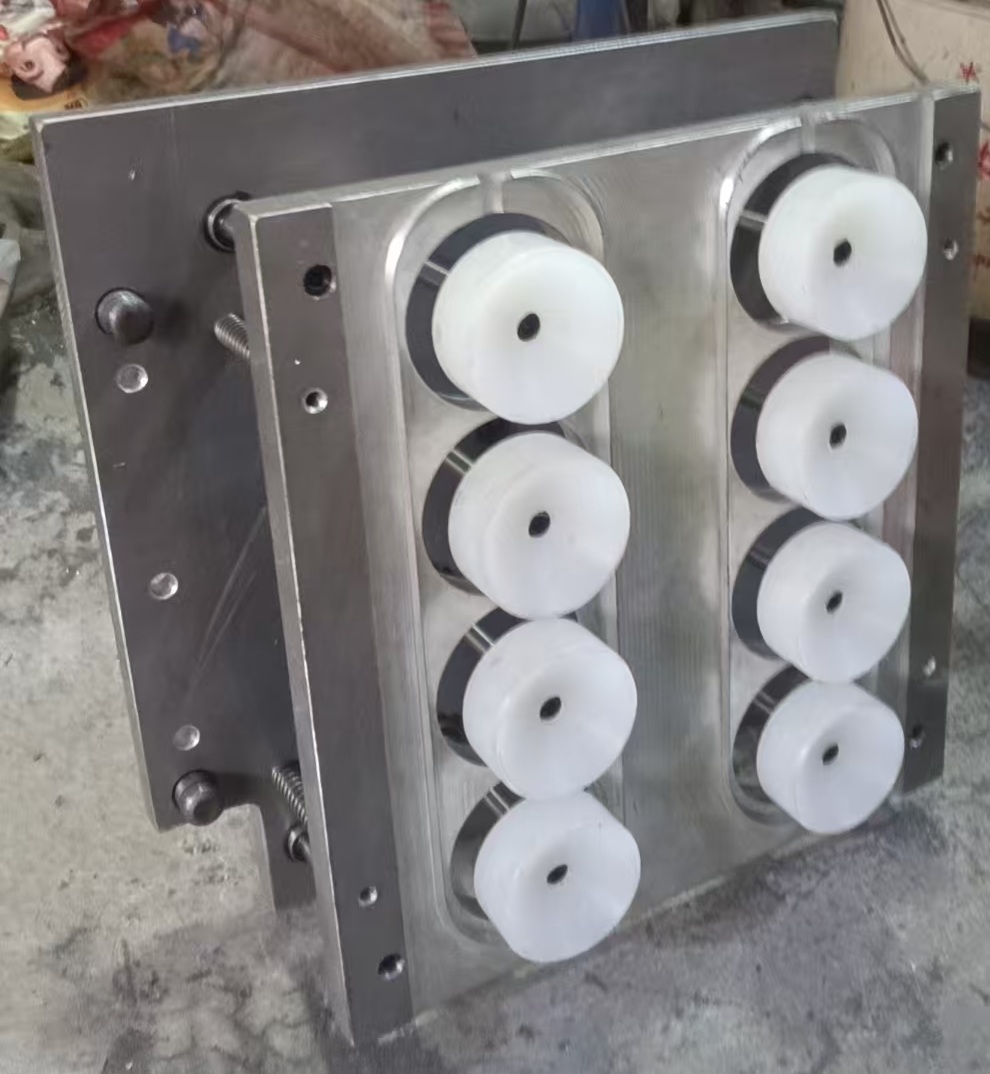

above is the deflashing part of mold

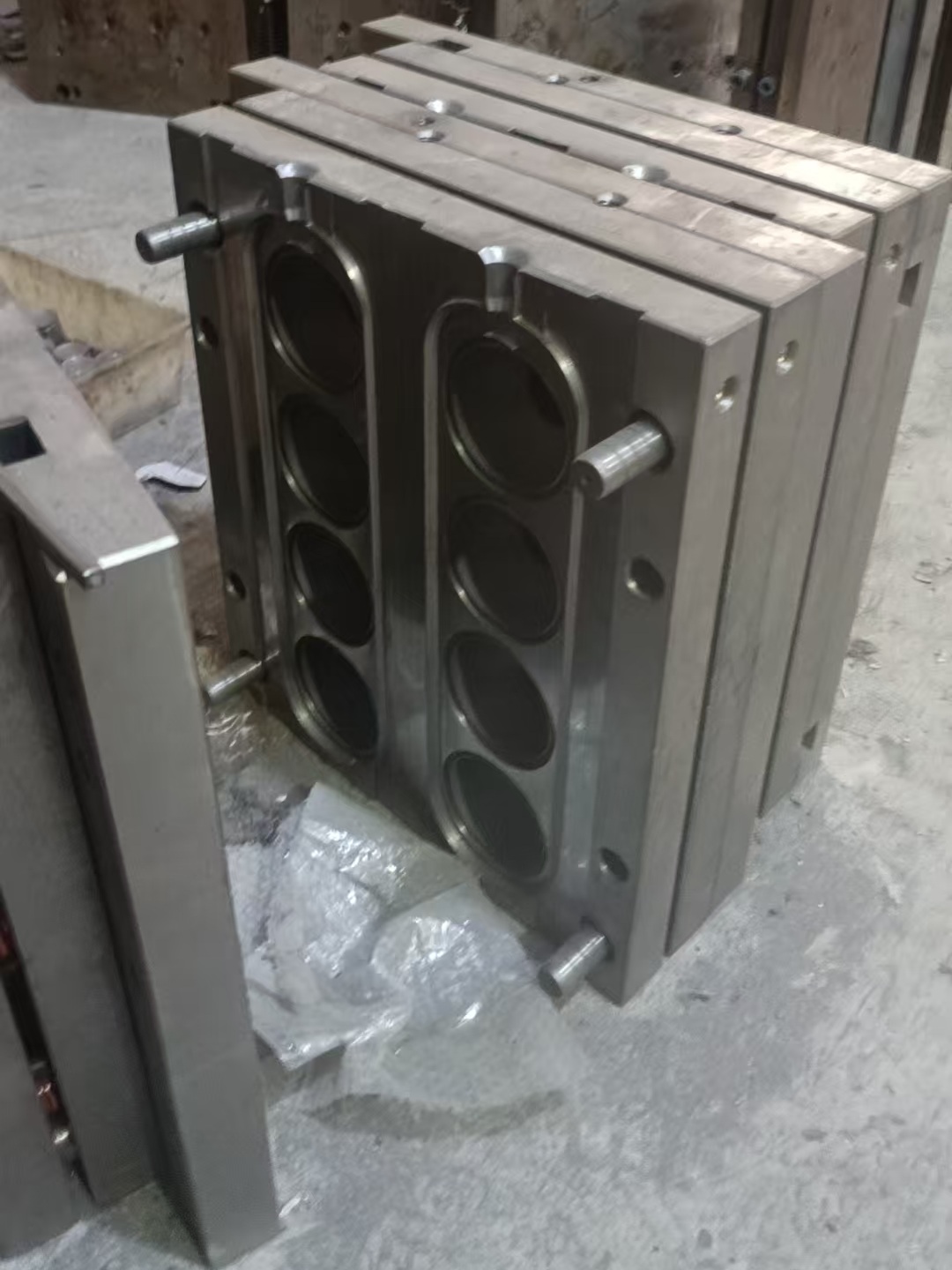

above is the half mold

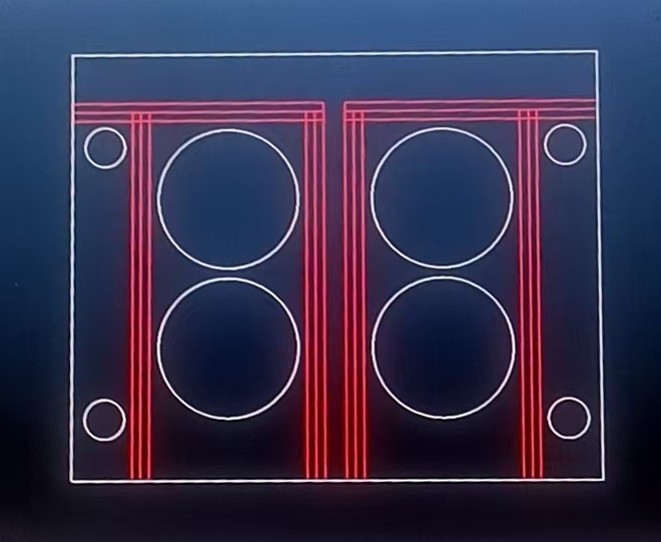

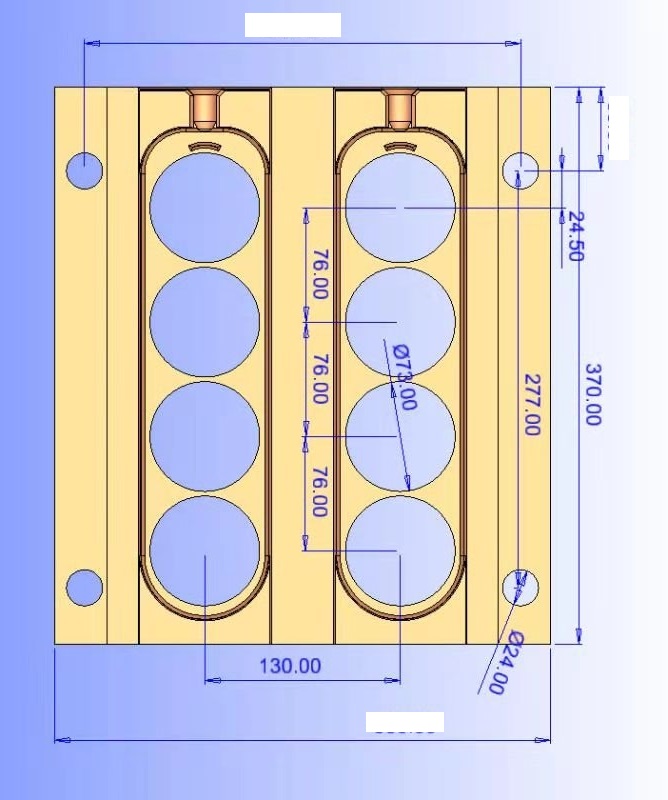

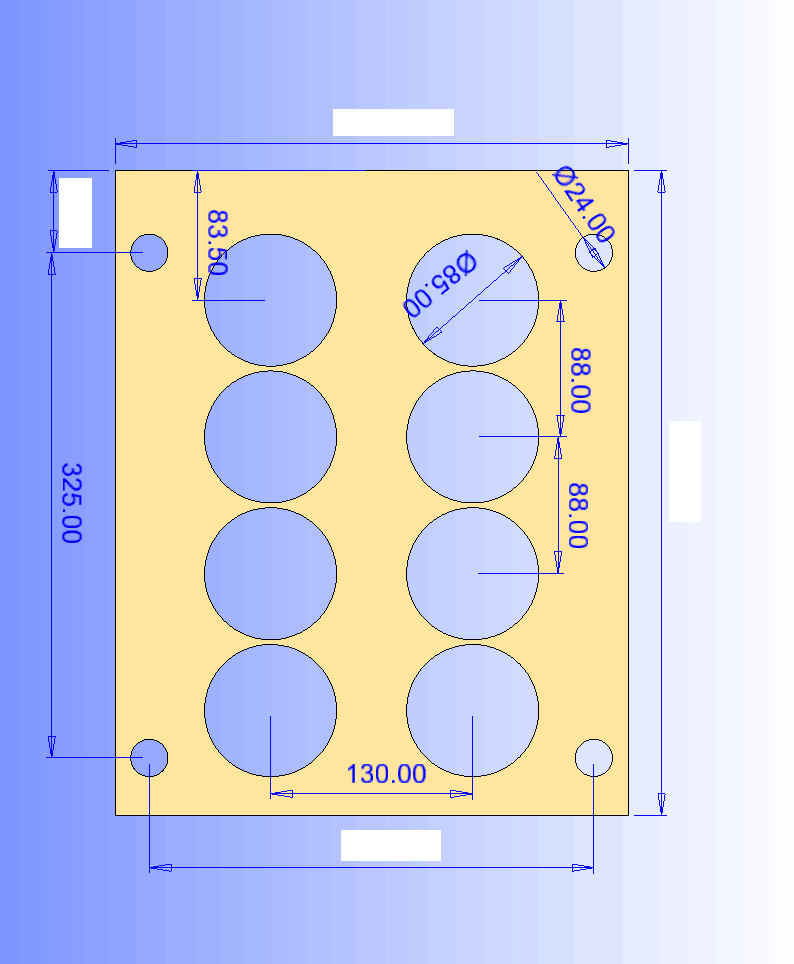

Sea Ball Mold Drawing:

We will design and manufacture ball molds for you based on requirements.

Here are drawing for molds for your reference.

Cooling Channel of the mold, our mold water channel is not easy to be stucked:

Molds Part:

After the molds have been used long time, this parts suppose to be changed.

But don't worry, we are able to provide you those parts.

We are ready to support everything you need about the machine.

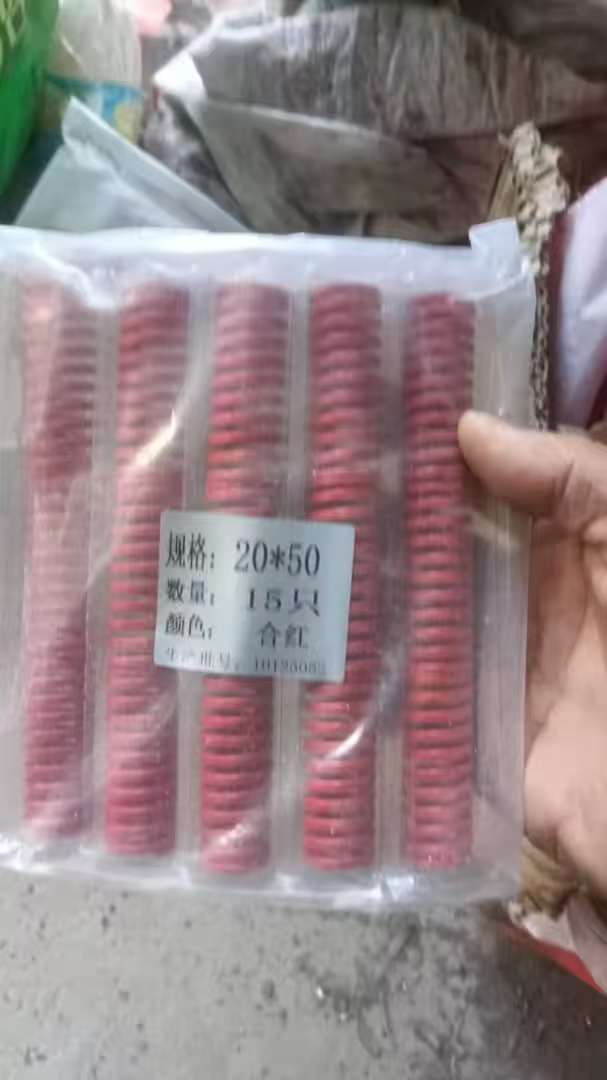

Spring for ball, you can prepare one bag of spring to be spare part:

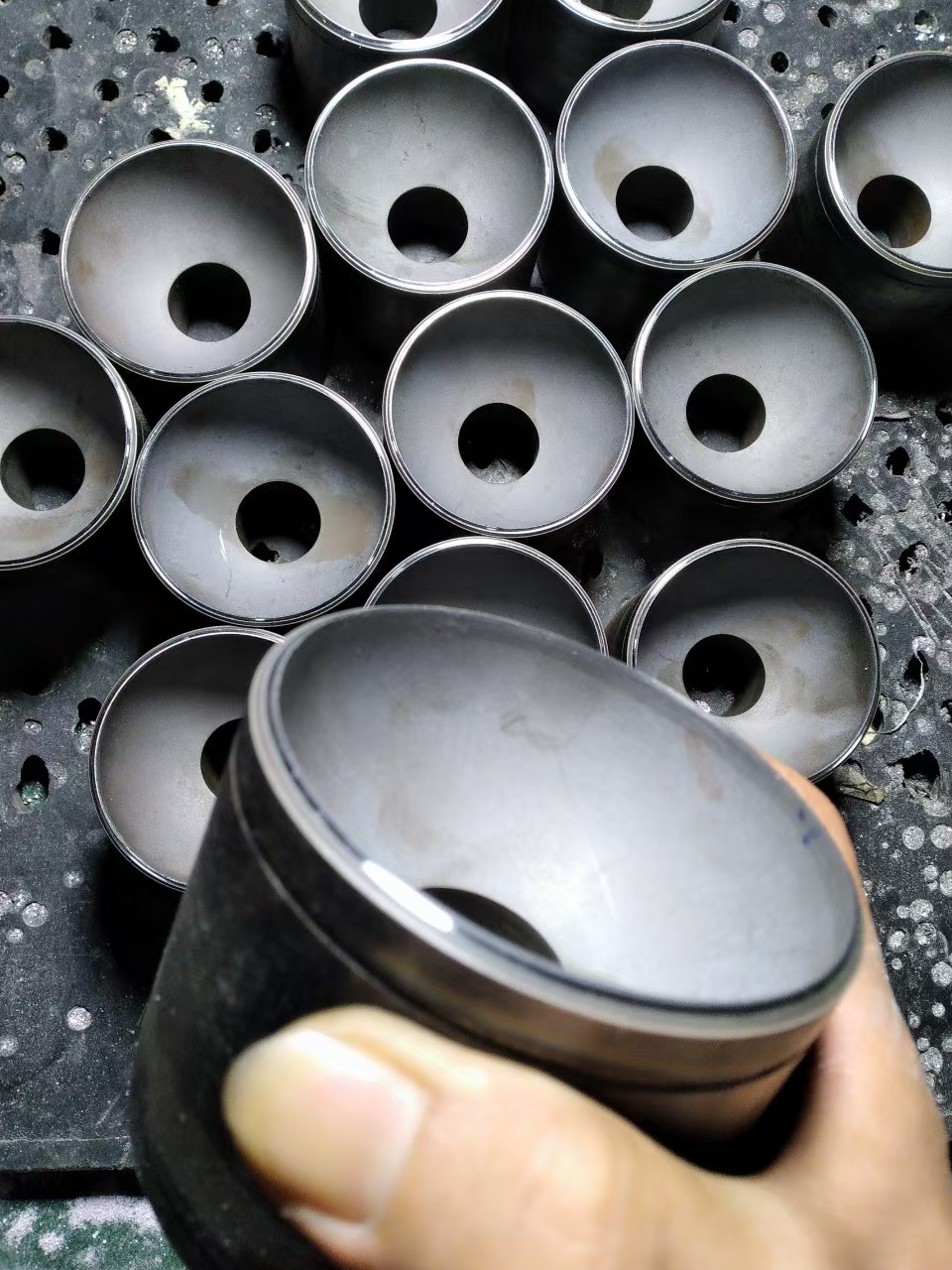

Core Center Part of Mold:

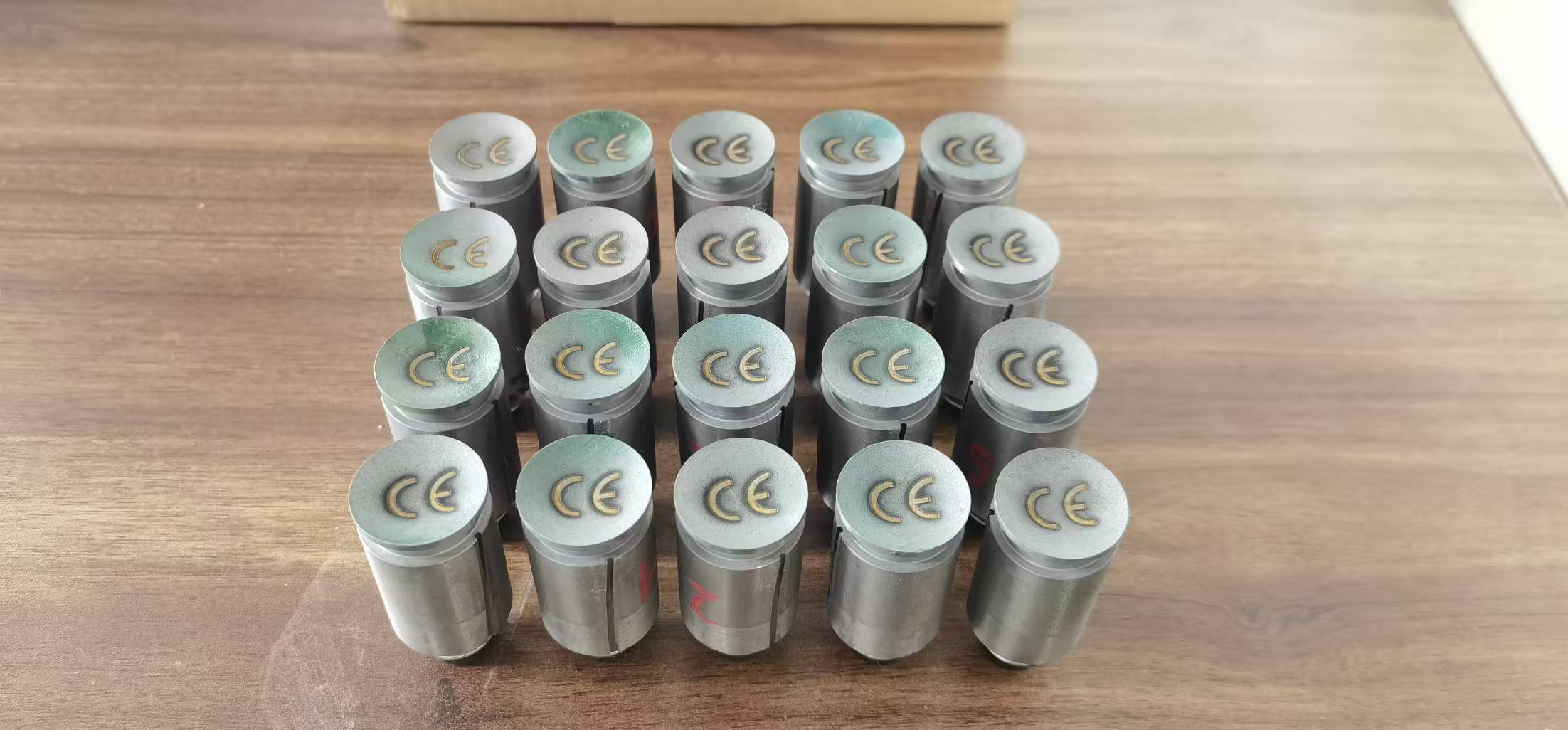

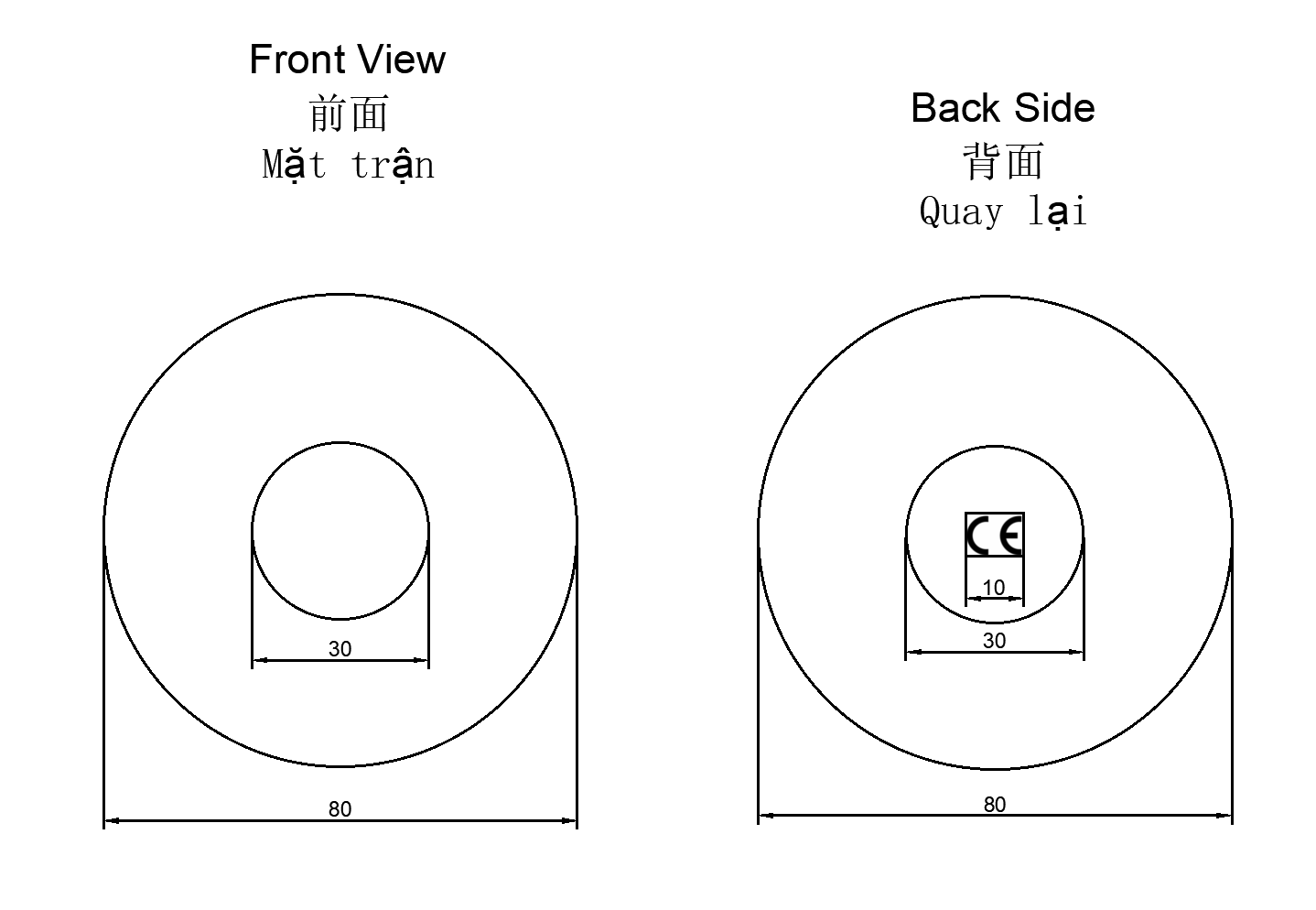

Ball Logo:

If you expert to European market, then you need to have CE logo on the ball.

Customer also could provide your company logo or brand to us, we will be able to mark on the mold.

logo example as below:

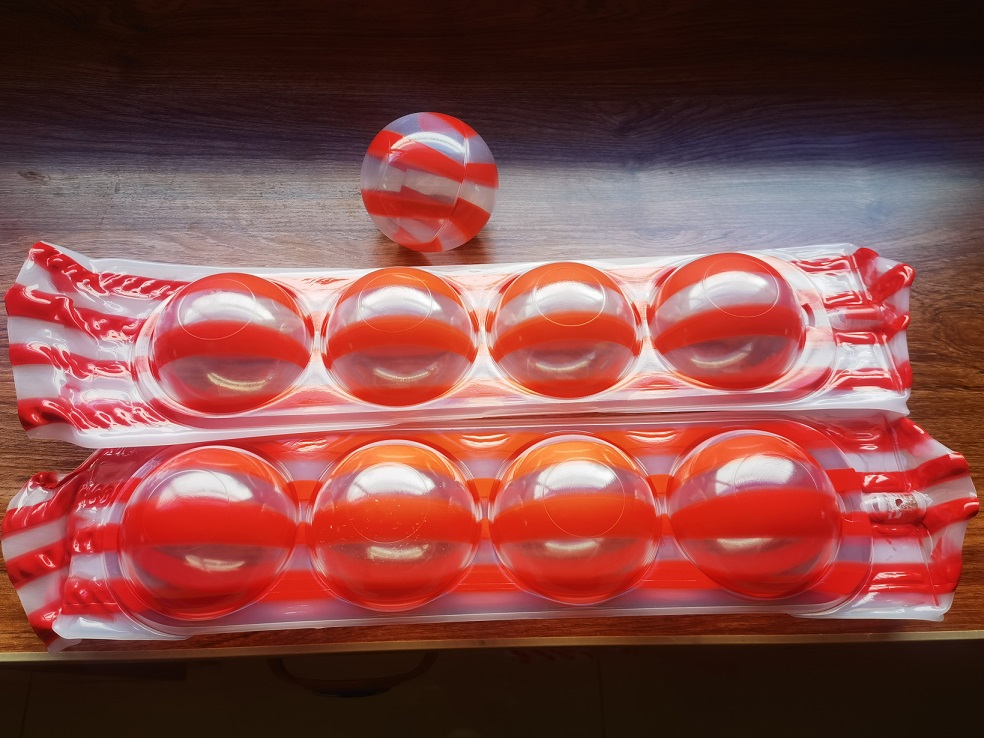

Below balls could be produced by our machine:

Auxiliary Machines(Need to use together with machine)

            Only blow molding machine cannot operate, we should use the blow molding machine together with below auxiliary machines:

1, Air compressor: use to supply compressed air

2, Auto Loader: use to load virgin resins to the hopper of the extrudor

3, Chiller: use to cooling the molds, because after long time operation, the molds will become hot;

4, Crusher: for the waste material from the blow molding machine, crusher will break the waste material to be small pieces, so we could use the recycled materil to mix with virgin resins again(customer decied to reuse material depends on the actual condition).

5, Mixer: The recyled material will be mixed with virgin resins and use mixer to mix the materials averagely.

Often Asked Question:

This ball is 60mm, what is the weight including balls and ball support?

What is the weight difference between different balls from up to down?

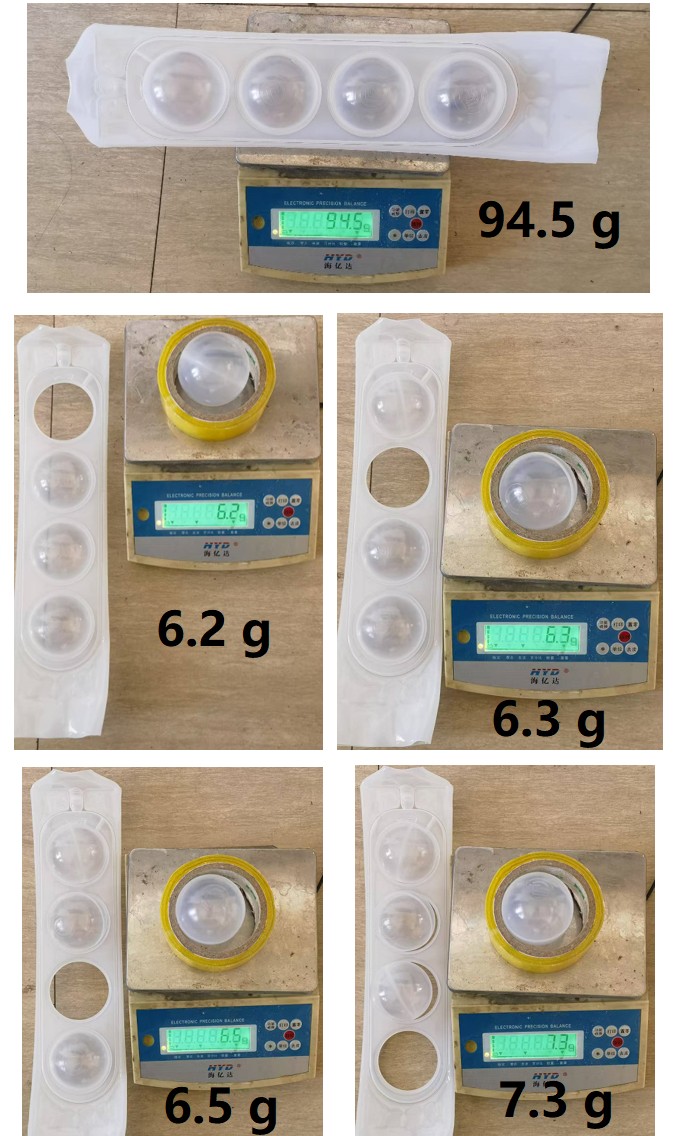

You can get answer from the below photo:

Here is the central line of the ball. we can manage the central line to be very samll.
