SQ-9 Plastic sewer pipe/ guide tube blowing machine range up to 1 meter

SQ-9  Plastic sewer pipe/ guide tube blowing machine range up to 1 meter

            Our company is a professional manufacturer of tube/pipe machine.  The wall thickness of the tube could be controlled by parison controller. So customer no need to afraid the tube thickness problem.  This tube machine is suitable to produce corrugated pipe length within 1 meters. This corrugated pipe could be used for sewer pipe or basin pipe. The guide tube is also could be produced by our machine, guide tube is used to guide the liquid from a gallon to a oil tank (from truck). The max. dia. meter is about 80mm. Every hour could produce 800 pcs.

Parameters:

Video demo is as below:

Guide Tube Video:

We also developed the tube combine machine to help operator

Machine Photos as below:

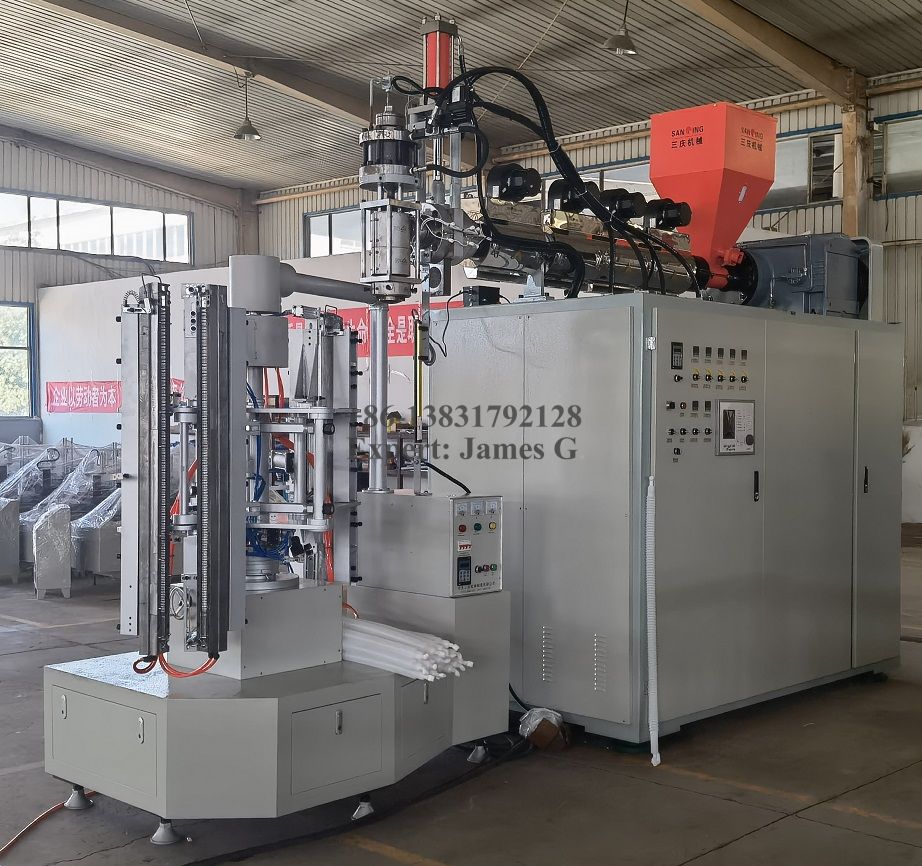

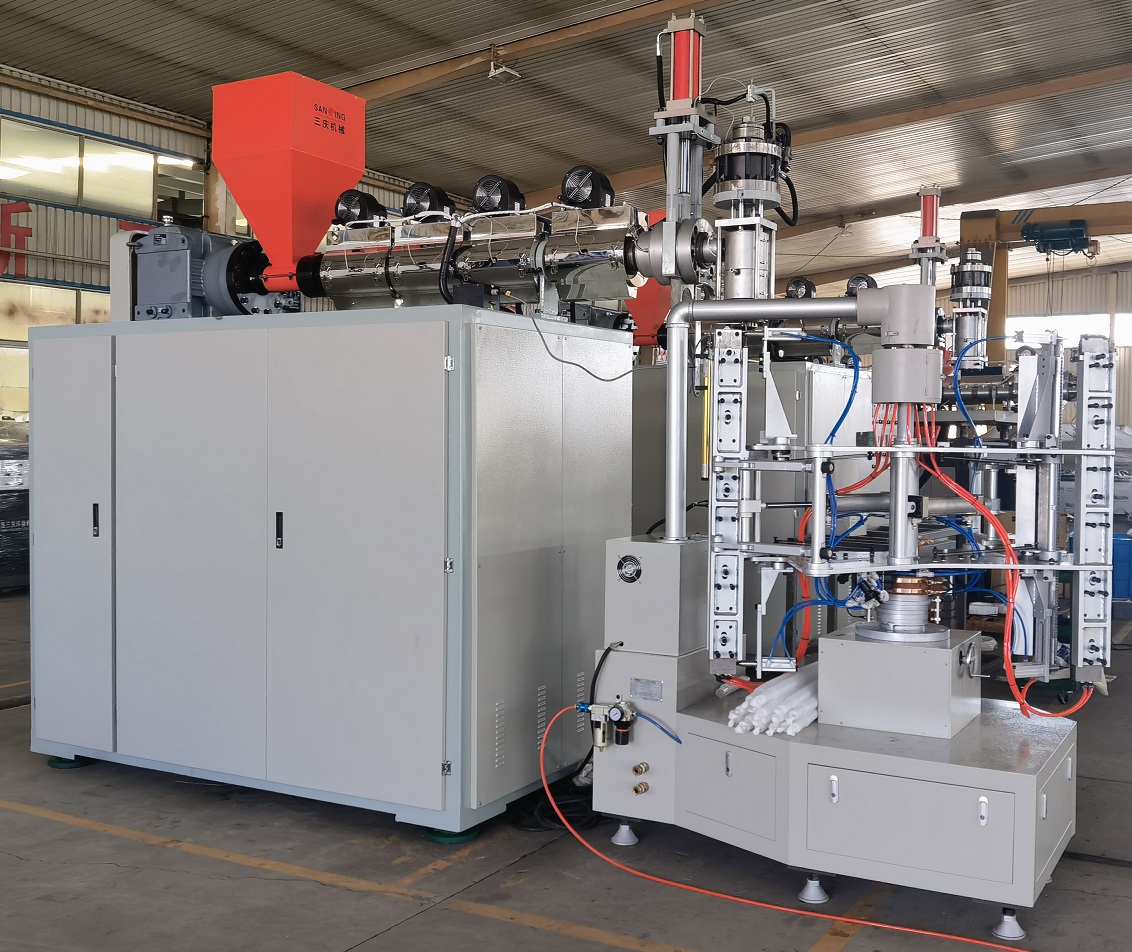

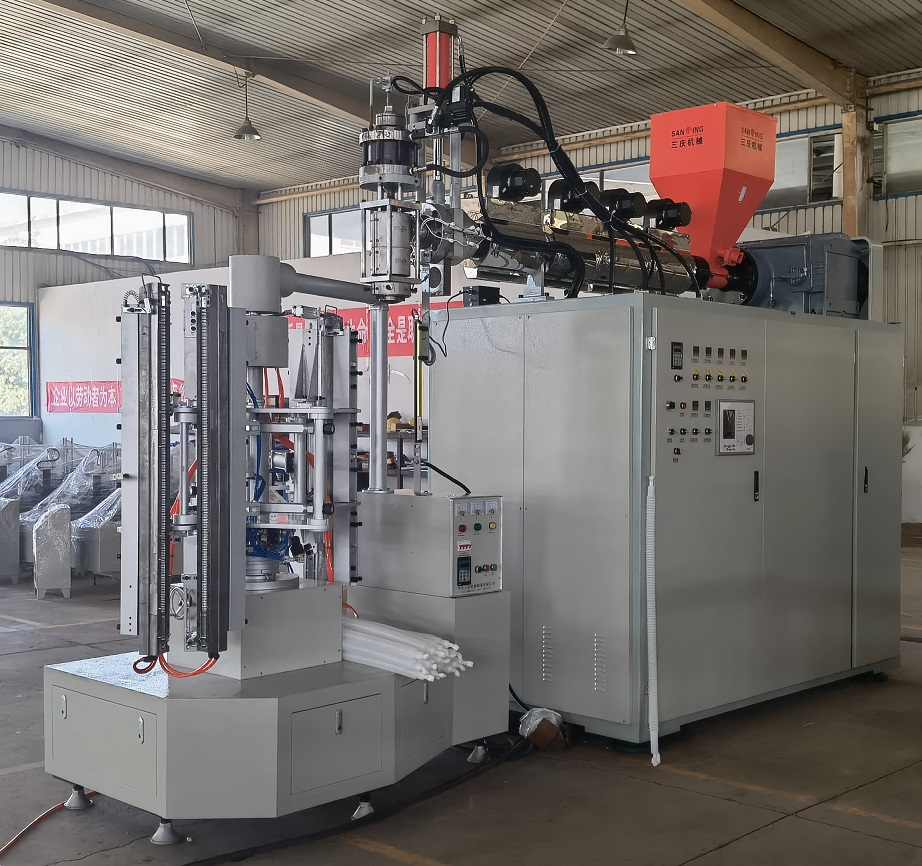

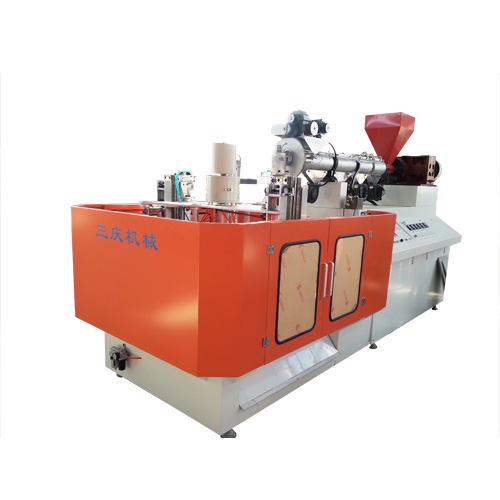

Above is the front view of the tube blowing machine.

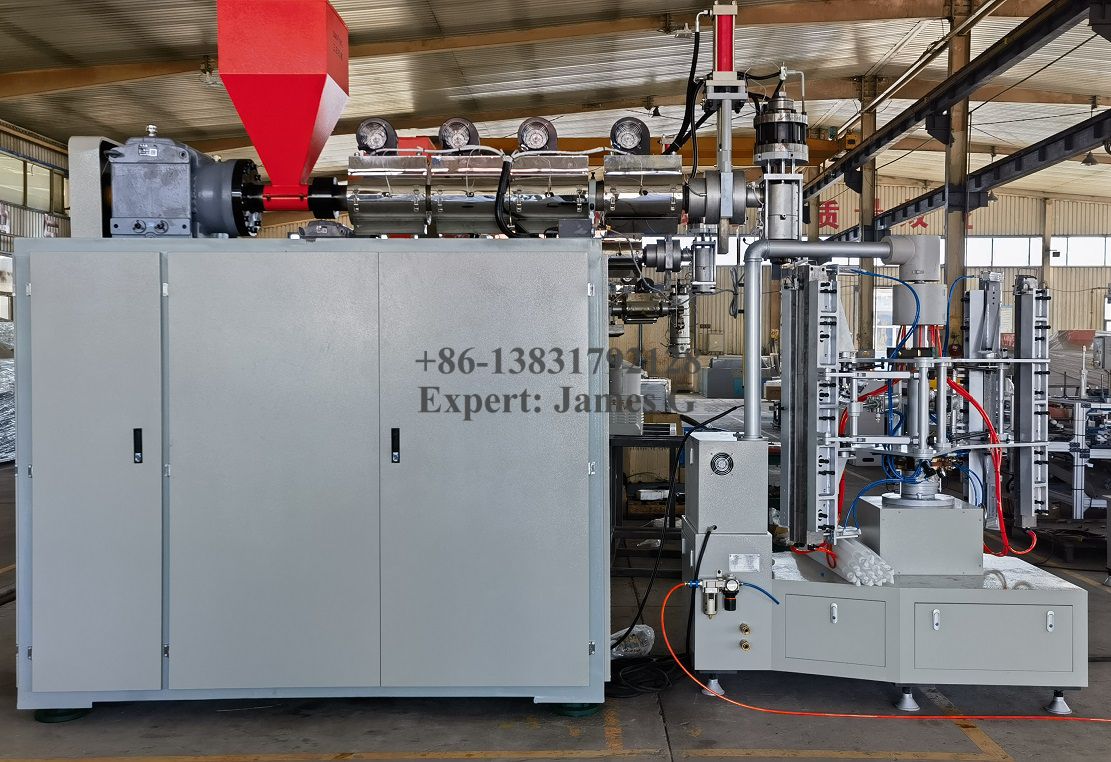

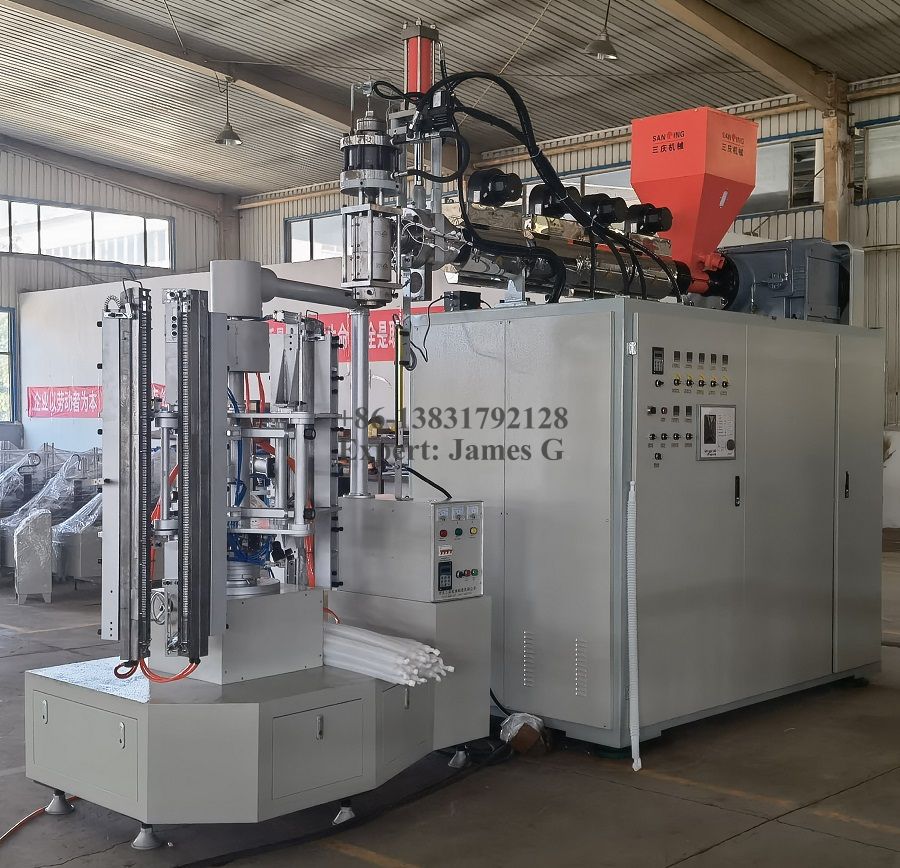

above is the back view of the tube blowing machine

Above is the temperature controller, inverter keypad, parison controller

Above is the controller of the rotary part of the machine

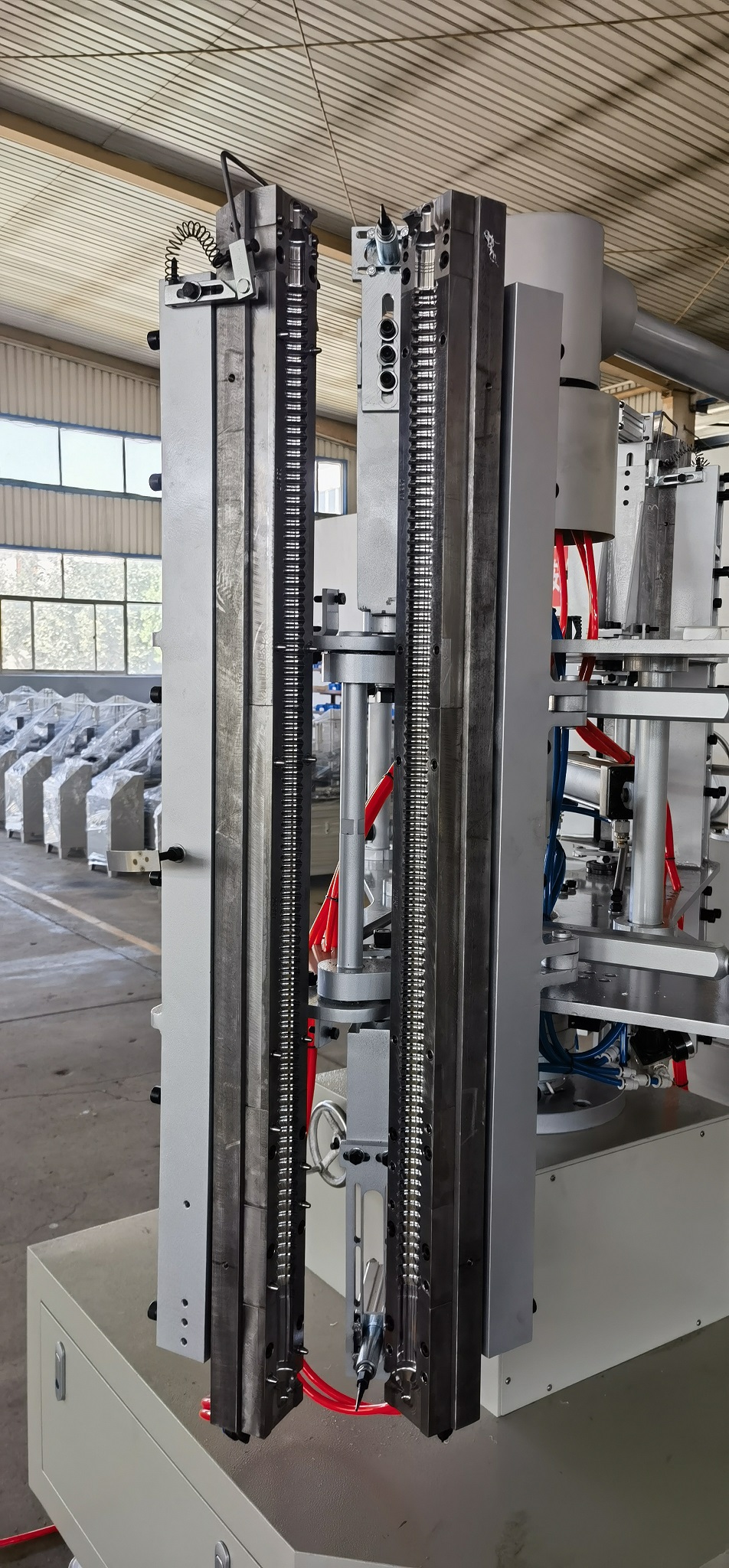

above is the mold for plastic tube

Tube Photos are as below:

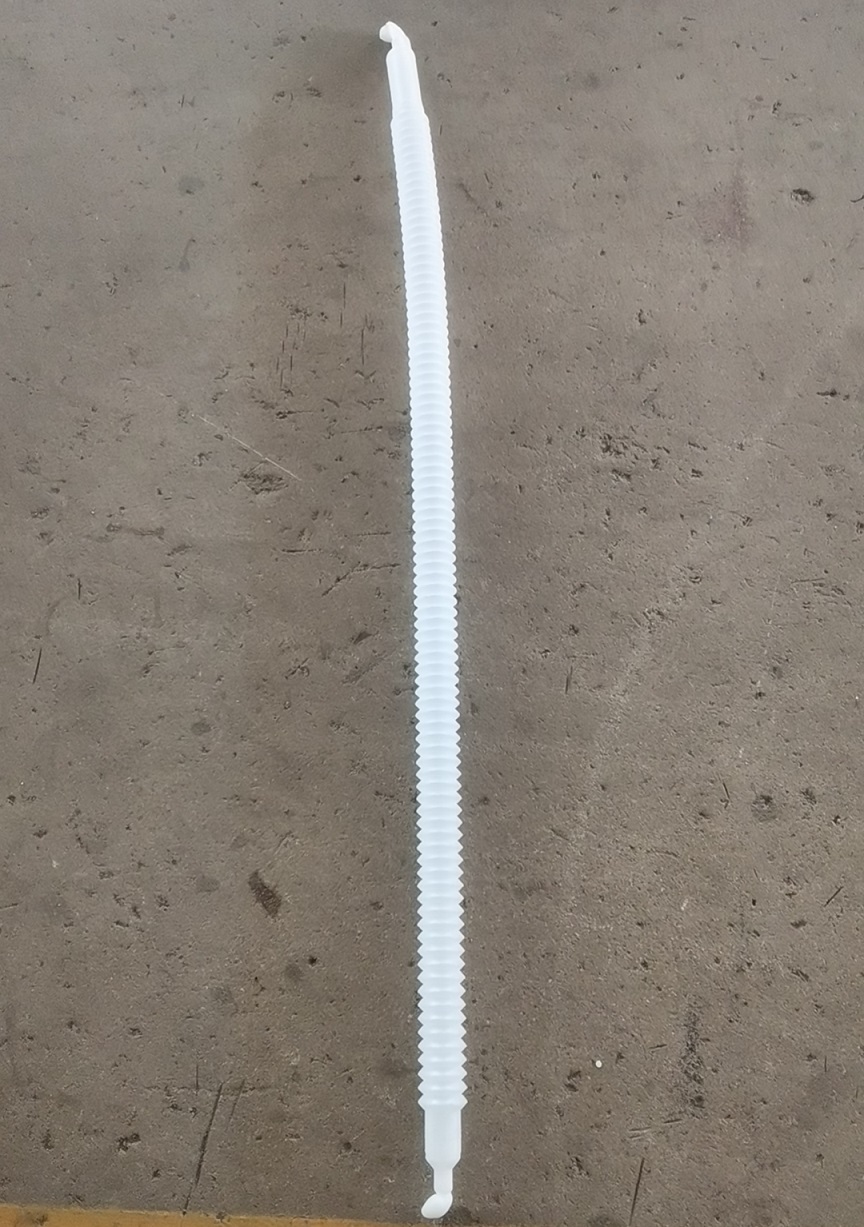

above is the 1 meter long basin/sewer tube

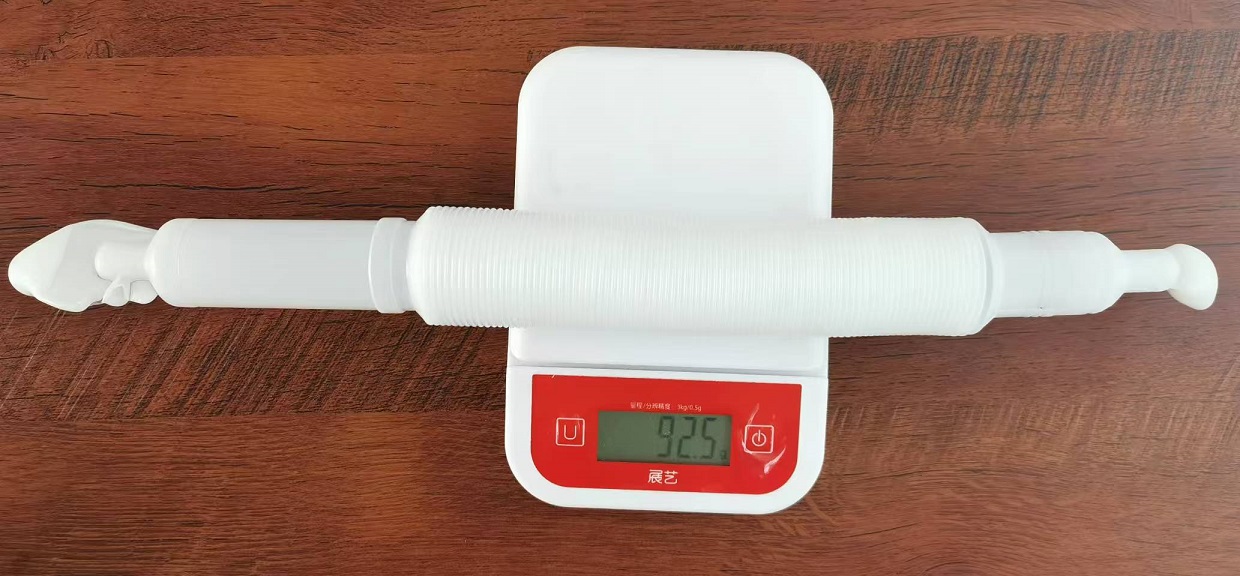

above is the tube after combined, weight is about 92.5 gram

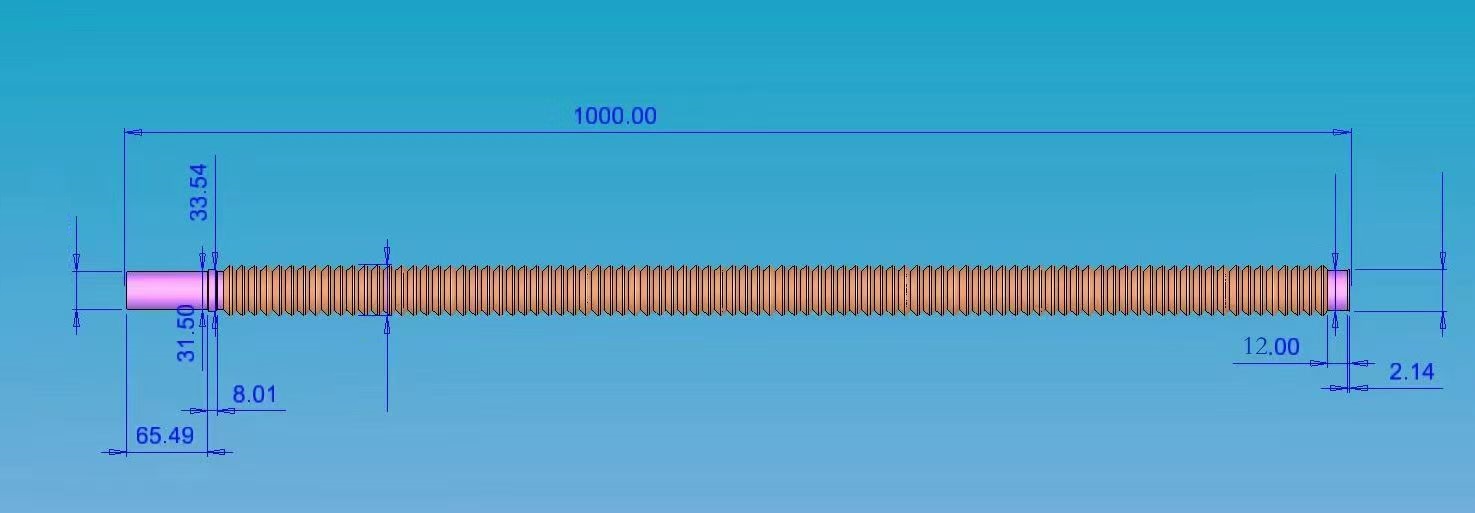

above is the drawing for the sewer/basin tube

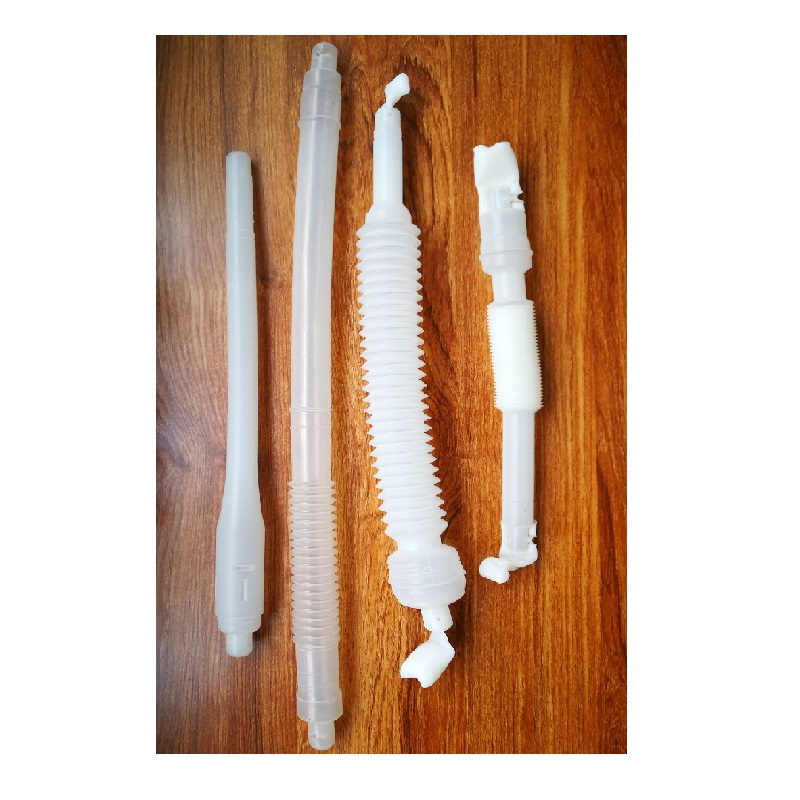

above is the guide tube (used to transfer oil from gallon to oil tank from truck)

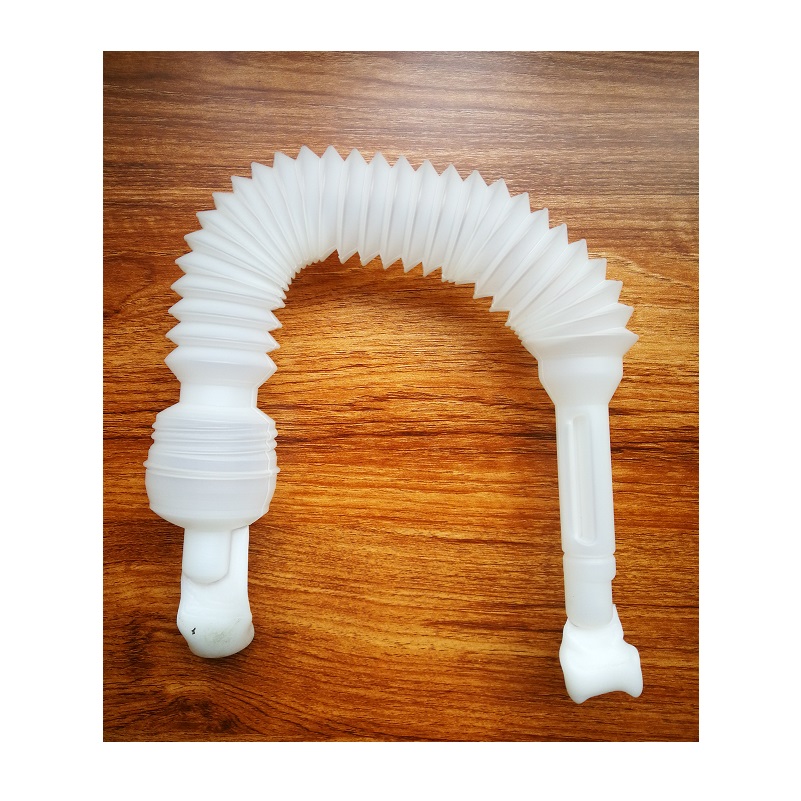

Above is the guide tube after bend

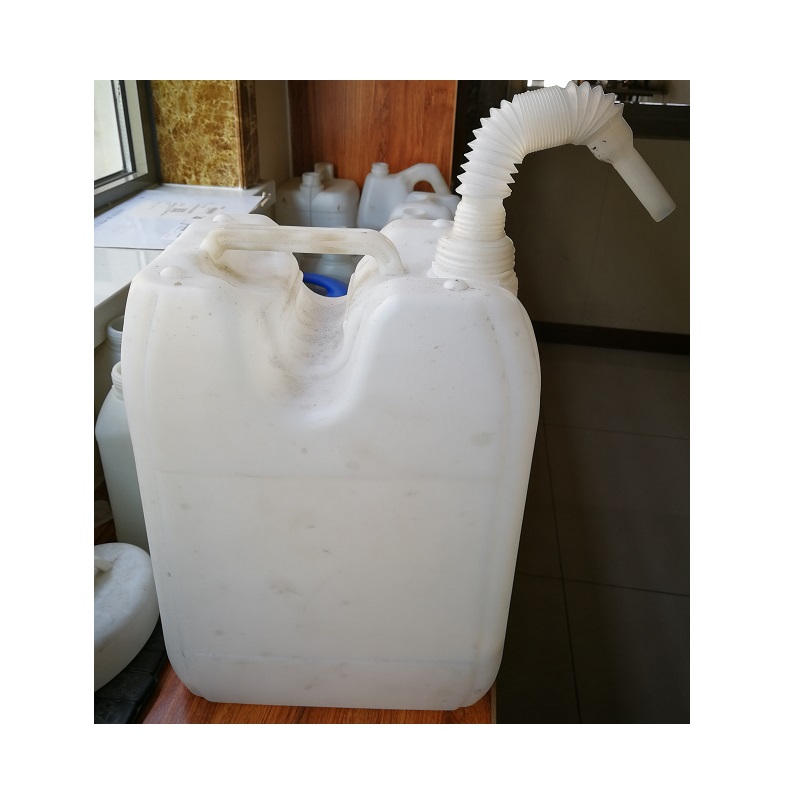

above is the guide tube transfer liquid from the gallon to oil tank

above is the guide tube extended and combined.

Separate Style Tube blowing machine-

connect style pipe tube machine

Auxiliary Machines

           Auxiliary Machines are necesary for blow molding machines. Only blow molding machine cannot operate, we should use the blow molding machine together with below auxiliary machines:

1, Air compressor: use to supply compressed air

2, Auto Loader: use to load virgin resins to the hopper of the extrudor

3, Chiller: use to cooling the molds, because after long time operation, the molds will become hot;

4, Crusher: for the waste material from the blow molding machine, crusher will break the waste material to be small pieces, so we could use the recycled materil to mix with virgin resins again(customer decied to reuse material depends on the actual condition).

5, Mixer: The recyled material will be mixed with virgin resins and use mixer to mix the materials averagely.

Often asked question:

How can we cut the waste part from two sides of tubes?

We have two kinds of the cutter machine:

1, tube end cut machine( you could check the video as below);

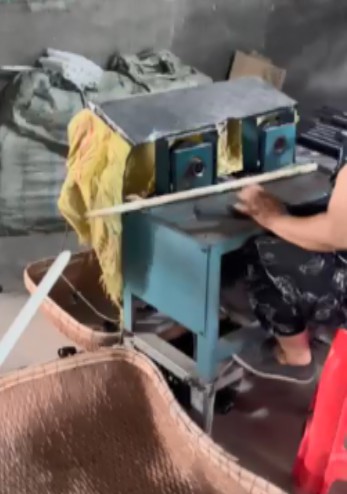

above is the tube end cutter machine

Click this link to view video:     https://youtube.com/shorts/XDz-whrmOcI?feature=shared

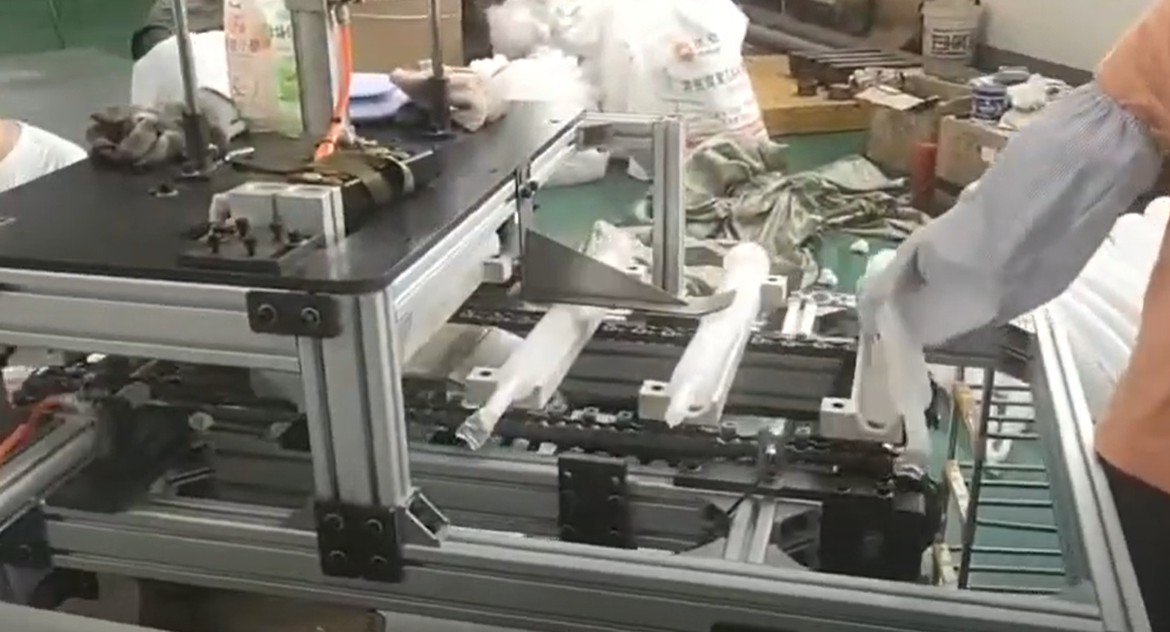

2, combine and tube end cut machine(you could check the video below):

above is photo of the combine and cut machine

above is the video for the combine and cutting machine
