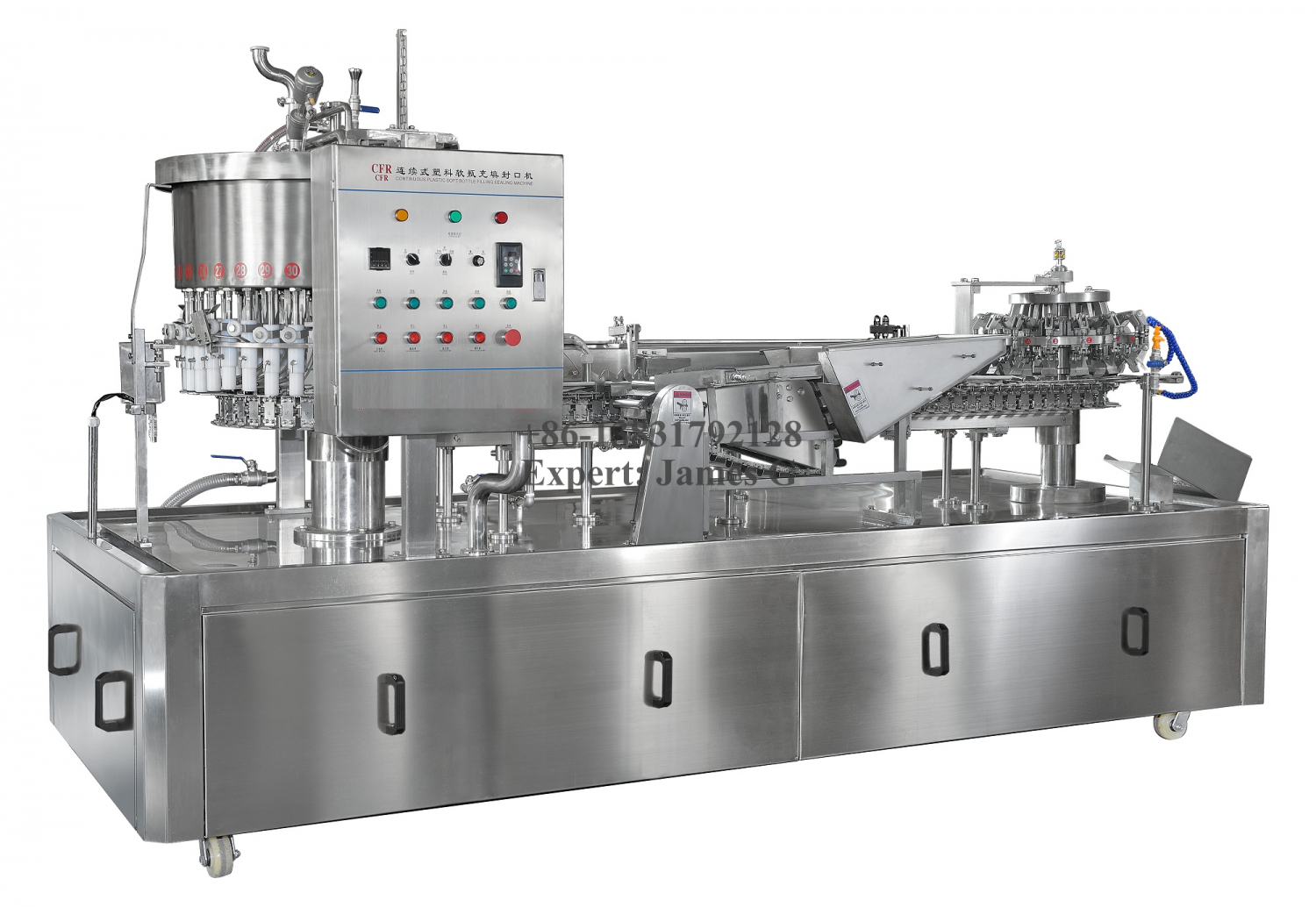

Ice lolly Filling & Sealing Machine
The machine is suitable to do the filling and sealing of the plastic (LDPE) soft bottle. It is suitable to do the packaging of the jelly-juice, juice, milk drink with low viscosity liquid. The machine has the function of No bottle Not filling; Automatic recycle of liquid material into tank; and mechanical adjustable pressure sealing. The negative pressure filling speed is fast and the operation is stable. The production process is fully automated.
Video Demo
Ice lolly Filling Machine Parameter
Power Supply电源 | 3-phase 380v 50HZ |
Filling head充填头 | 40heads |
Mouth Diameter 瓶口规格 | Φ6.8 Φ8 Φ9 Φ10（mm） |
Capacity产量 | About 9000-10,000pcs/hr |
Total Power总功率 | 18kw |
Air Consumption耗气量 | 1.5m³/min |
Working Pressure工作压力 | 0.5-0.7MPa |
Machine Dimension 机器尺寸 | About 3500×1450×2000mm（L*W*H） |
Technical Data
A. Heating Part
Ø Heating Tube Size: ¢20 × Length 1300mm
Ø Quantity: 4pcs/set machine
Ø Heating Tube Power: 3kw/pc
Ø Power Voltage: 220v
Ø Control Mode: Constant Temperature Heating
B.Chain Part
Ø Main Chain: 304 Stainless Steel, pitch 25.4mm
Ø Bottle Hang Clamp: 120pcs
Ø Motor:1.5kw, 3-phase,380V; Gear Box: WP0100, 60:1
Ø Machine frame is made of 304# Stainless Steel Square Tube with 304# SS plate.
C.Filling Part
Ø Filling Head: 40pcs/unit, divide up and down parts
Ø Material: Nylon
Ø Material Tank: Stainless Steel 304
Ø Filling Nozzle: Stainless Steel 304
D.Liquid Material Cycle Part
Ø Diaphragm pump according to a certain proportion of time to automatically pump the excess liquid to the material barrel
Ø Diaphragm pump using steam working principle.
E.Vacuum Part
Ø Vacuum function of 2 suction and 2 filling in filling work.
Ø Vacuum Pump: 4kw, 3-phase,380V
G.Equipment power and operating environment
Ø Hot water: 60-80℃,filing head wash(provided by user)
H.Equipment Control Instructions
Ø Control Mode: Automatic control, Panel switch operation
ELECTRICAL COMPONENT电气配置
No. | NAME | BRAND |
1 | MOTOR 电机 | DONGGUAN MINGCHEN/CHINA 中国东莞 |
2 | GEAR REDUCER 减速箱 | SHANTOU JIXIANG/CHINA 中国汕头集祥 |
3 | CYLINDER 气缸 | AIRTAC/TAIWAN 台湾亚德客 |
4 | SOLENOID VALVE 电磁阀 | AIRTAC/TAIWAN 台湾亚德客 |
5 | LIMITED SWITCH 行程开关 | OMRON/JAPAN 日本欧姆龙 |
6 | TEMPERATURE CONTROLLER 控温表 | TESHOW/TAIWAN 台湾台松 |
7 | MIDDLE RELAY 中间继电器 | SHANGHAI CHAONENG/CHINA 上海超能 |
8 | INVERTER 变频器 | SHENZHEN ENC/CHINA 深圳易能 |
9 | SOLID RELAY 固态继电器 | SHANGHAI CHAONENG/CHINA 上海超能 |

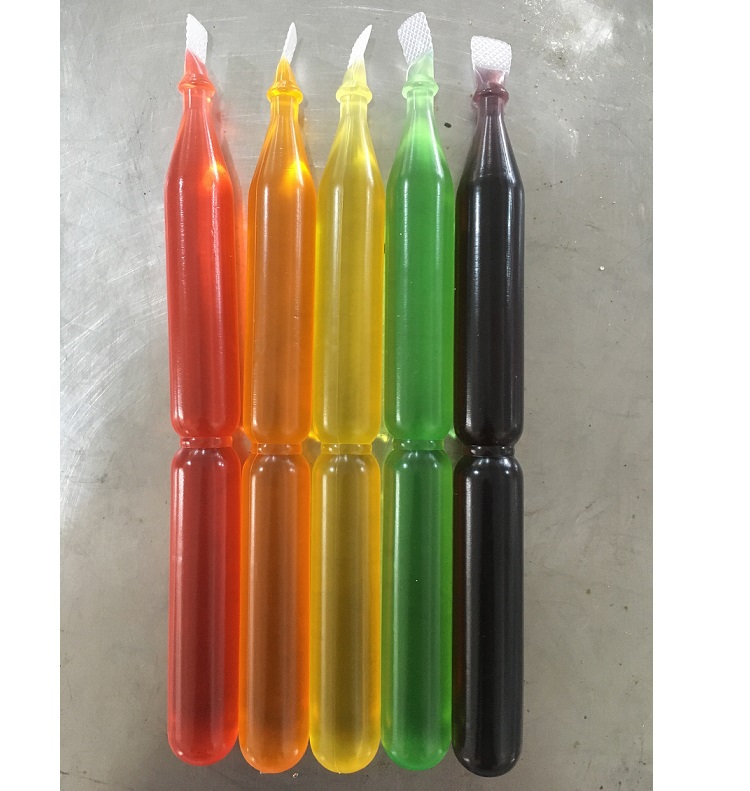

Ice lolly Tubes After filling & Sealing:
