Ice lolly filling & sealing machine-semi auto
BRF-6 plastic soft-bottle filling and sealing machine is suitable for filling and sealing the LDPE plastic soft-bottles. It is specialized in packaging of beverage, soda water, yogurt and little jelly juice .The machine is clean and bright, up to the foodstuff sanitation standards. It combines pneumatic and electric process with multiple functions. The machine is running automatically form filling, heating ,sealing till final products going out, except hanging bottle manually. The machine has the advanced Japans brand PLC.

Video of the semi-auto filling machine:
Video of the full automatic filling machine:
The machine equipped with the automatic feeder will be able to feed the ice lolly tubes automatically.
The below is the video demo.
TECHNICAL SPECIFICATIONS:
Output: 2800-5000 b/h
Filling nozzle Quantity: 8
capacity of bottle: 10-150ML
Power supply: 2-phase(220V、50HZ)
Motor power: 2.2 kw
Air pressure: 0.5-0.8 Mpa
Max.Air consumption: 0.4 m3/min
Dimensions: 3000×900×1600mm(L×W×H)
Weight: Aprox: 850 kg
Machine Photos:

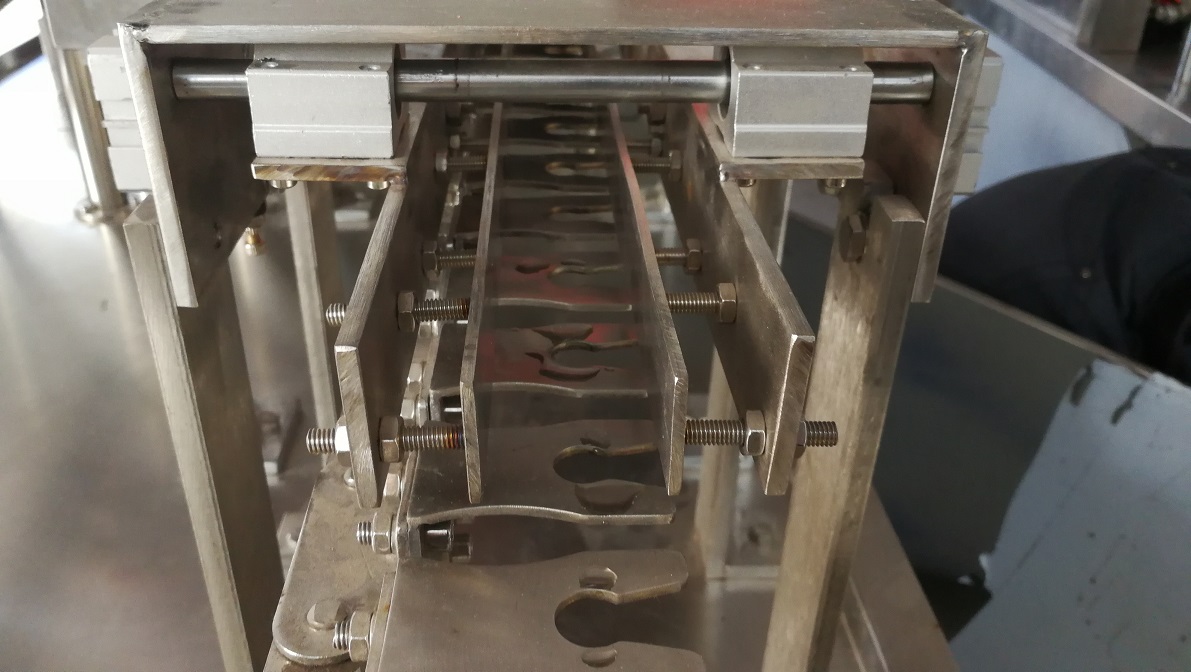

Tube Feeding part

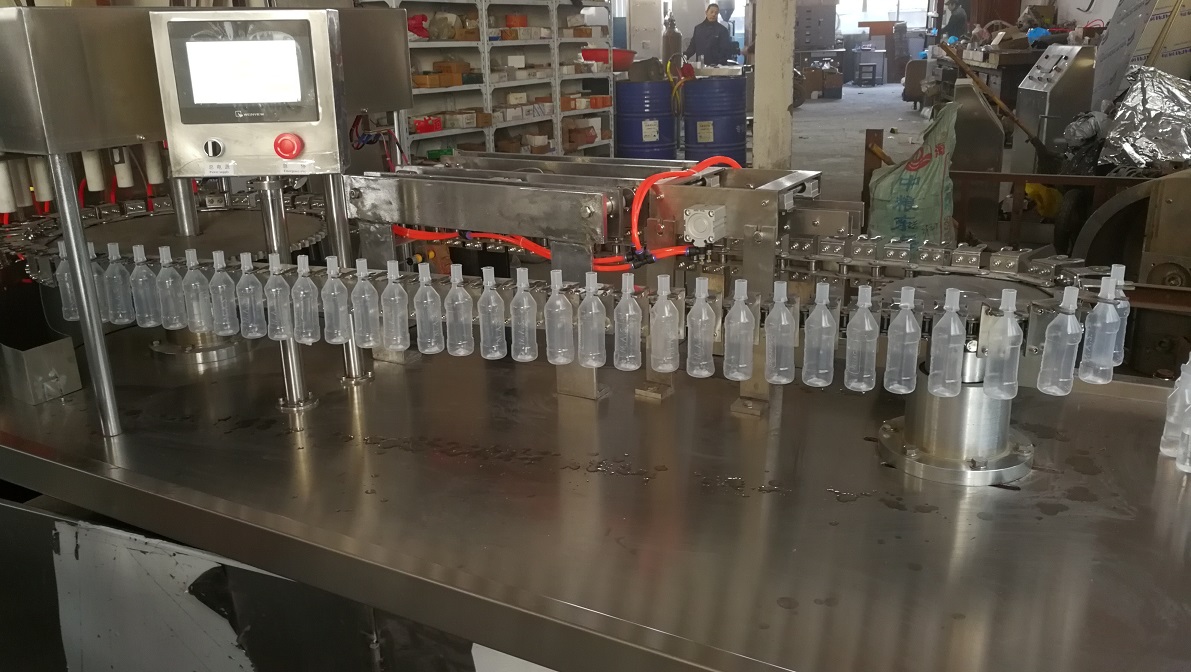

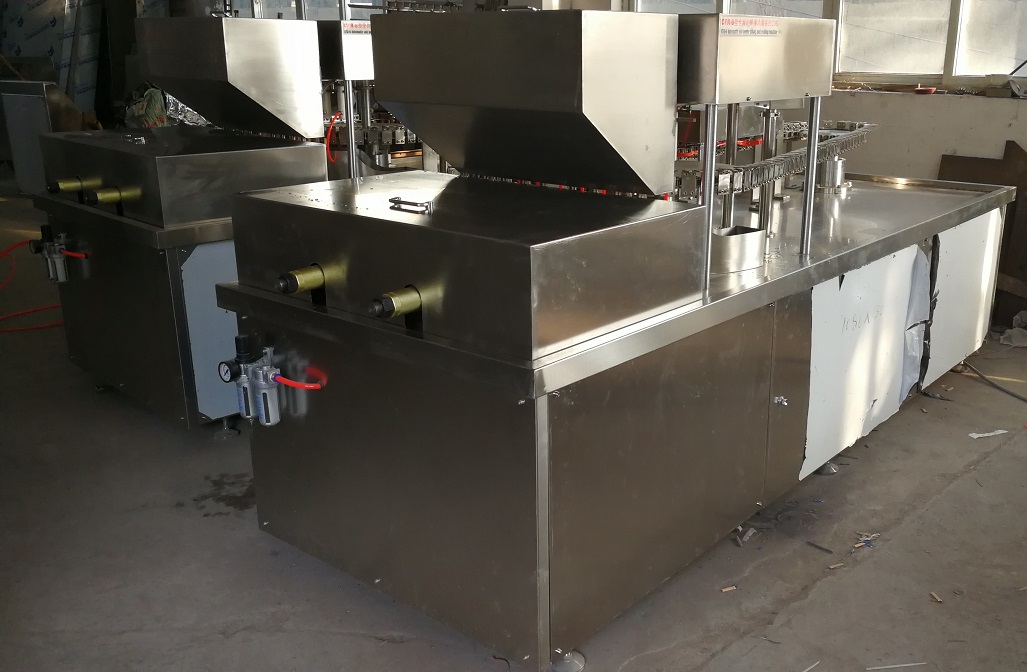

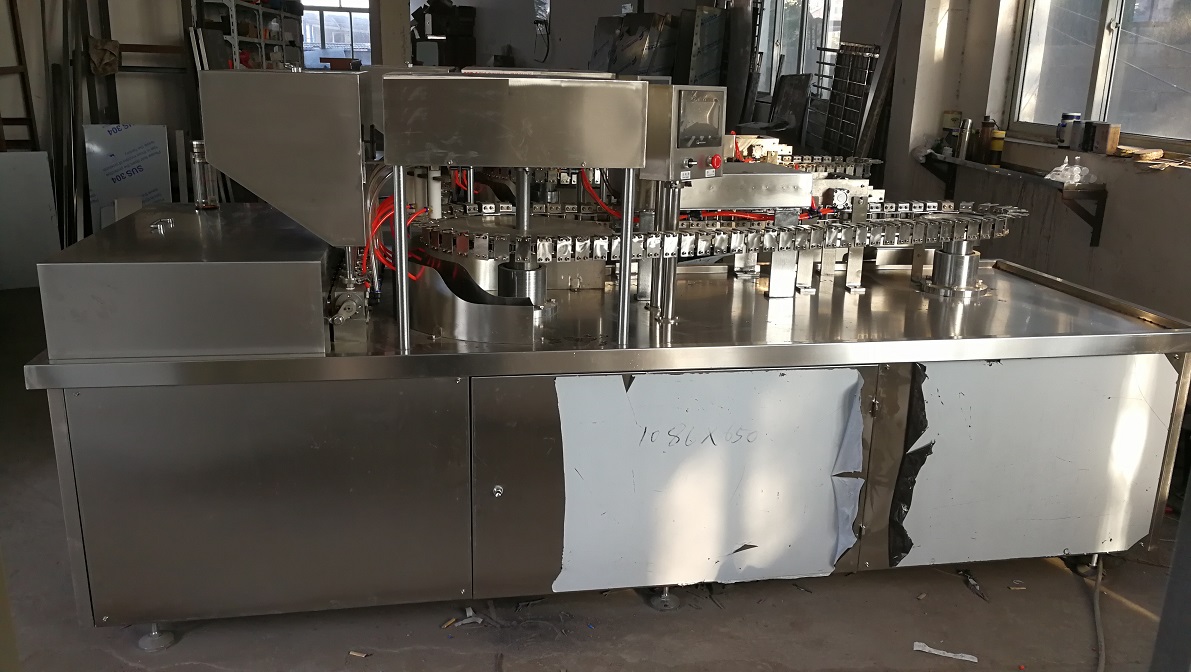

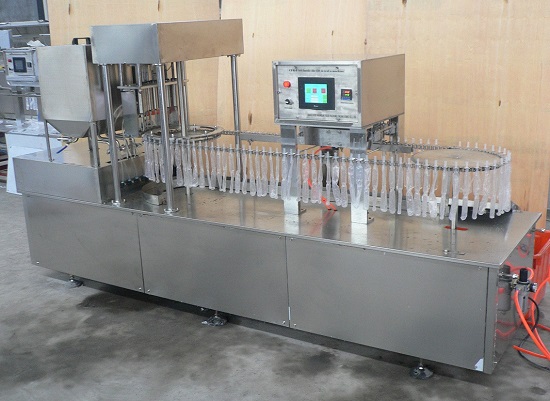

whole machine

backside of machine

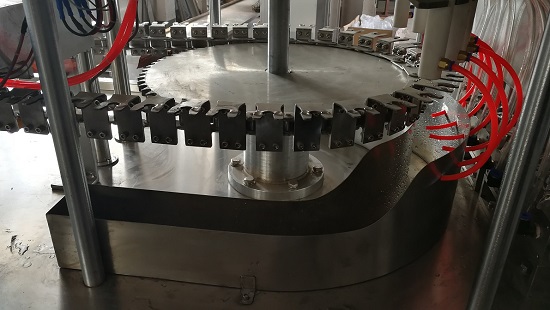

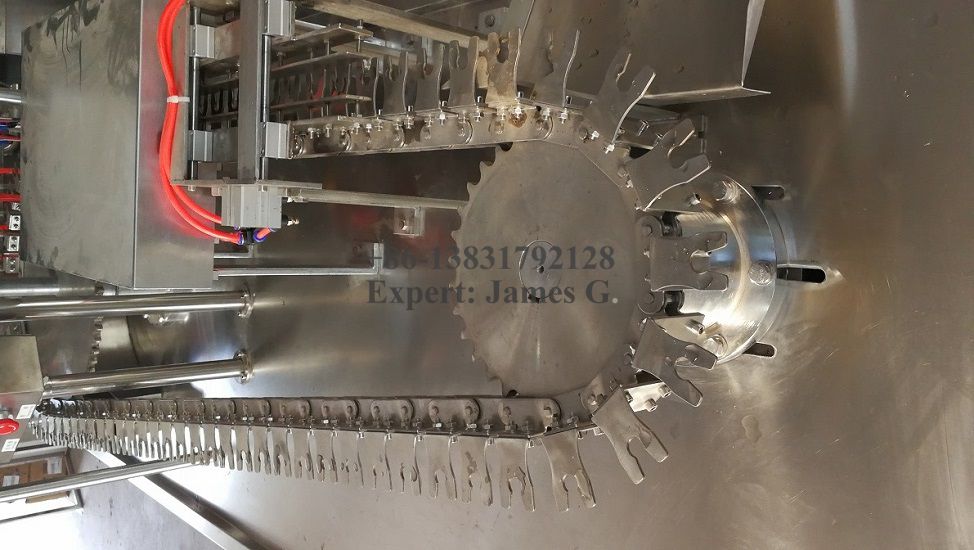

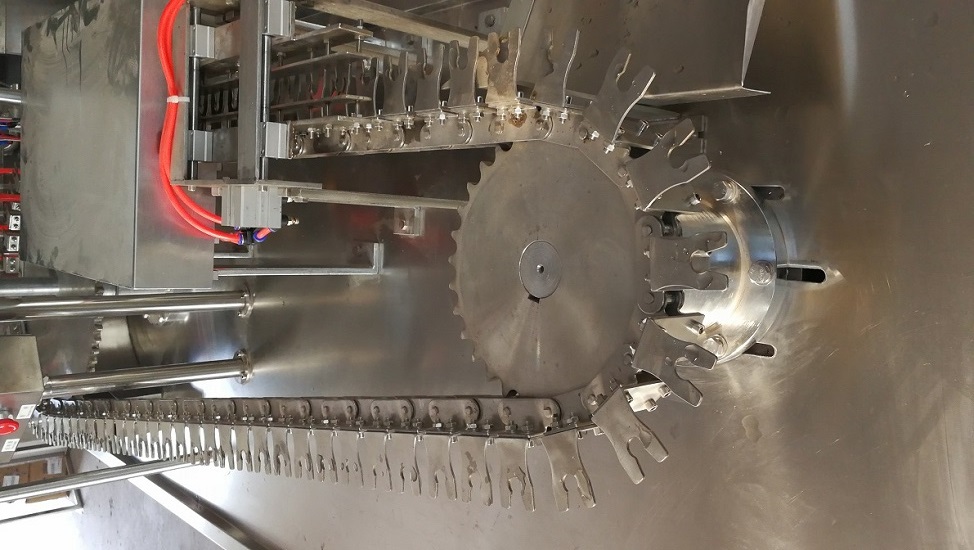

Rotating Plate Part

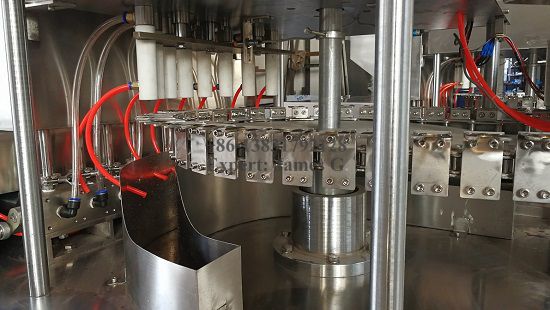

Filling Nozzle

FeedingPart

heating Part

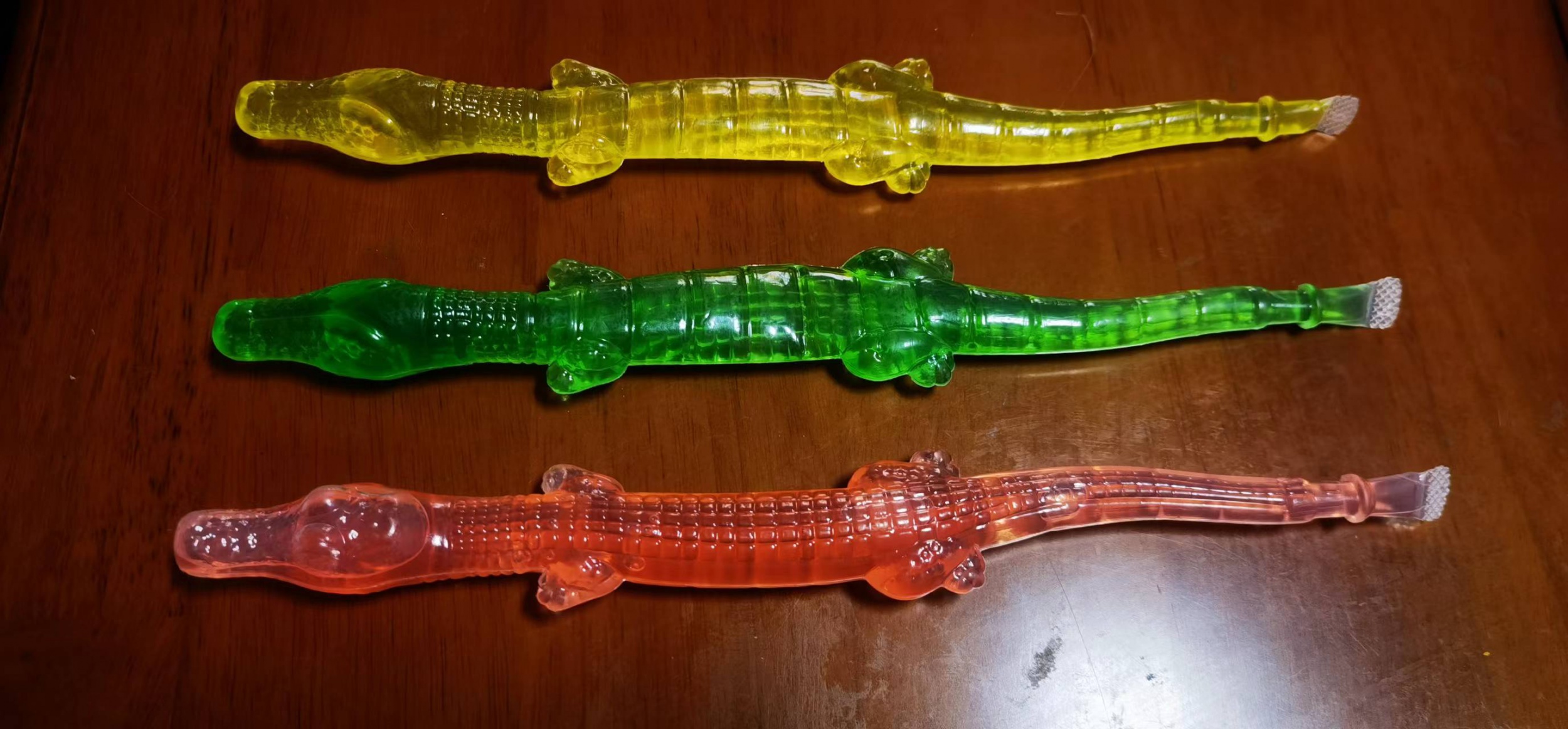

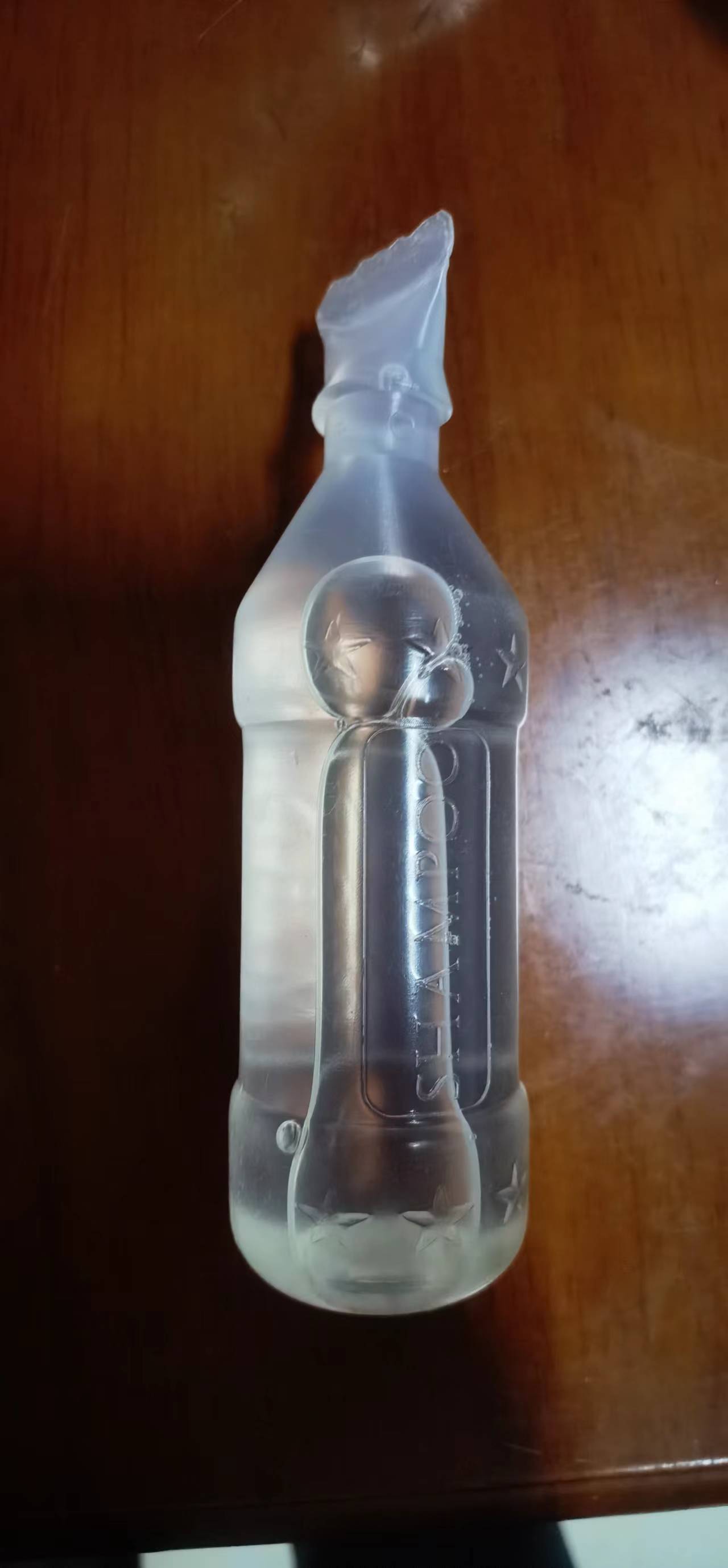

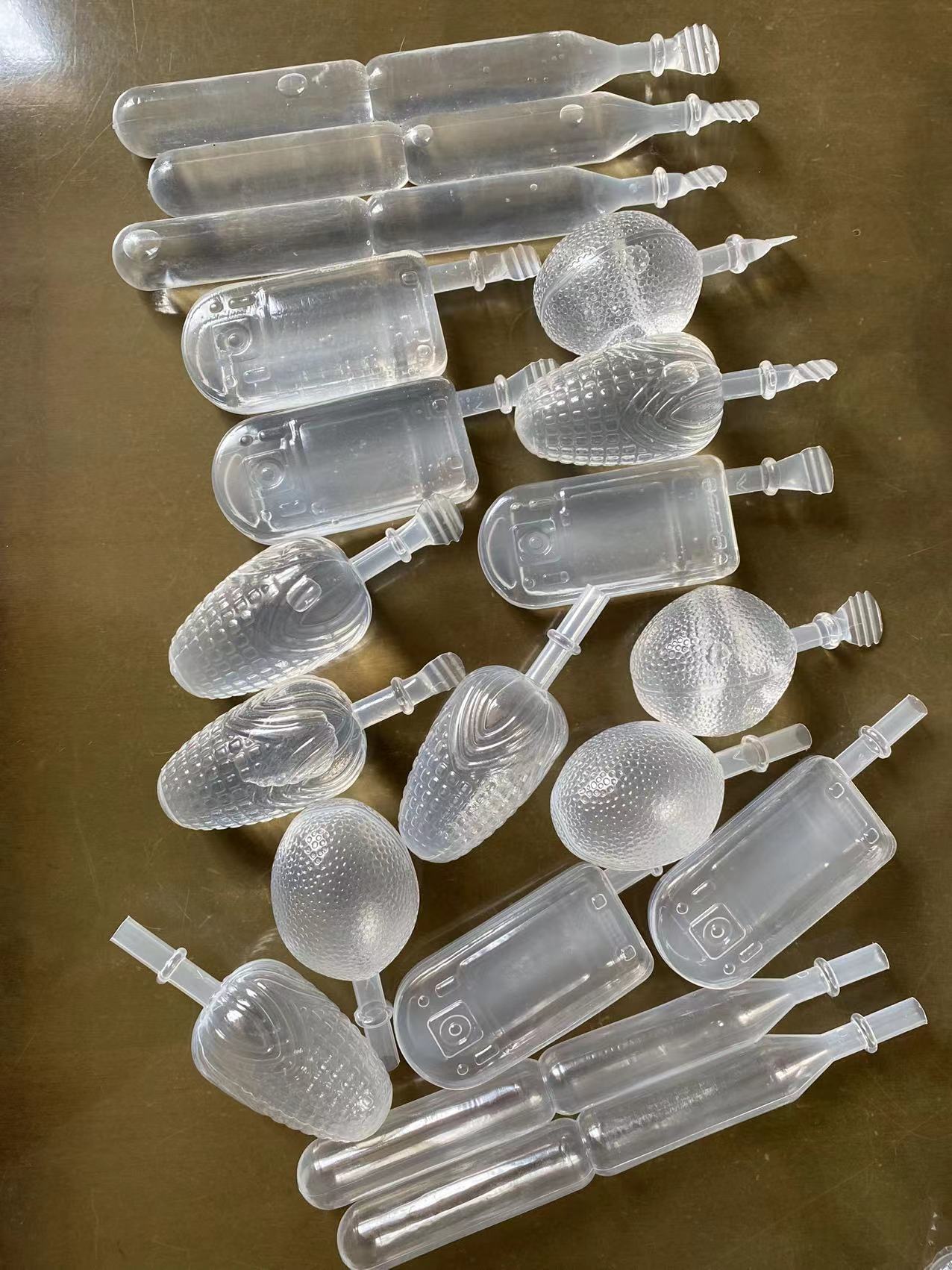

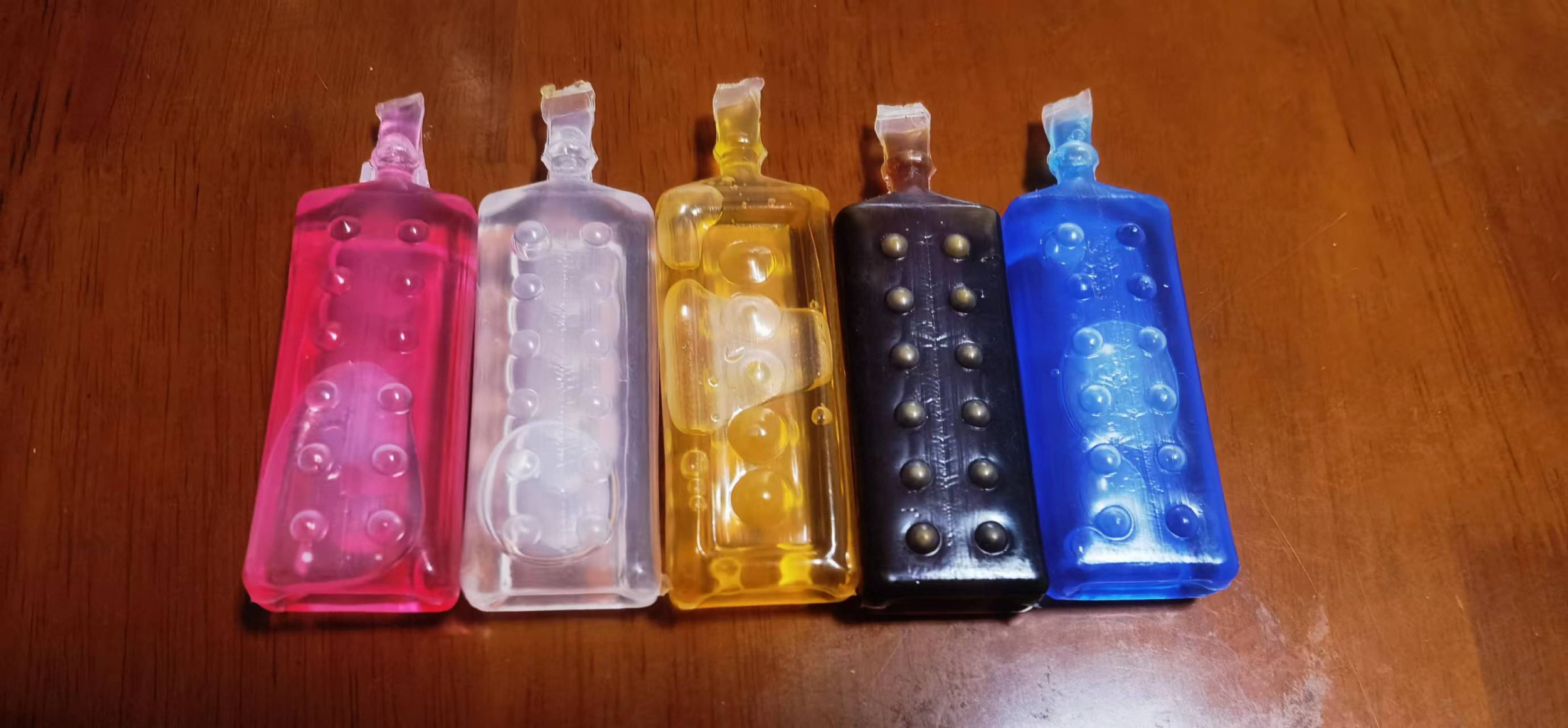

Feeding Product Photo:

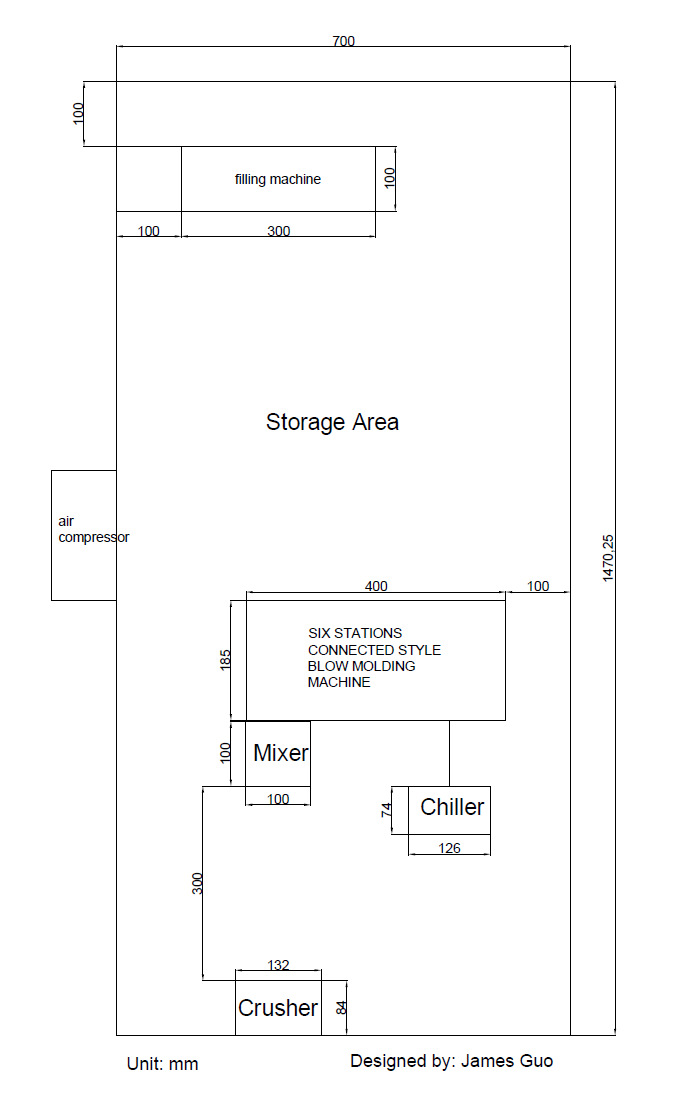

Production Plant layout:
